MODEL LH-SMF
LH-SMF Stadium LED Flood Light / High Mast Flood Light (400W–1500W)

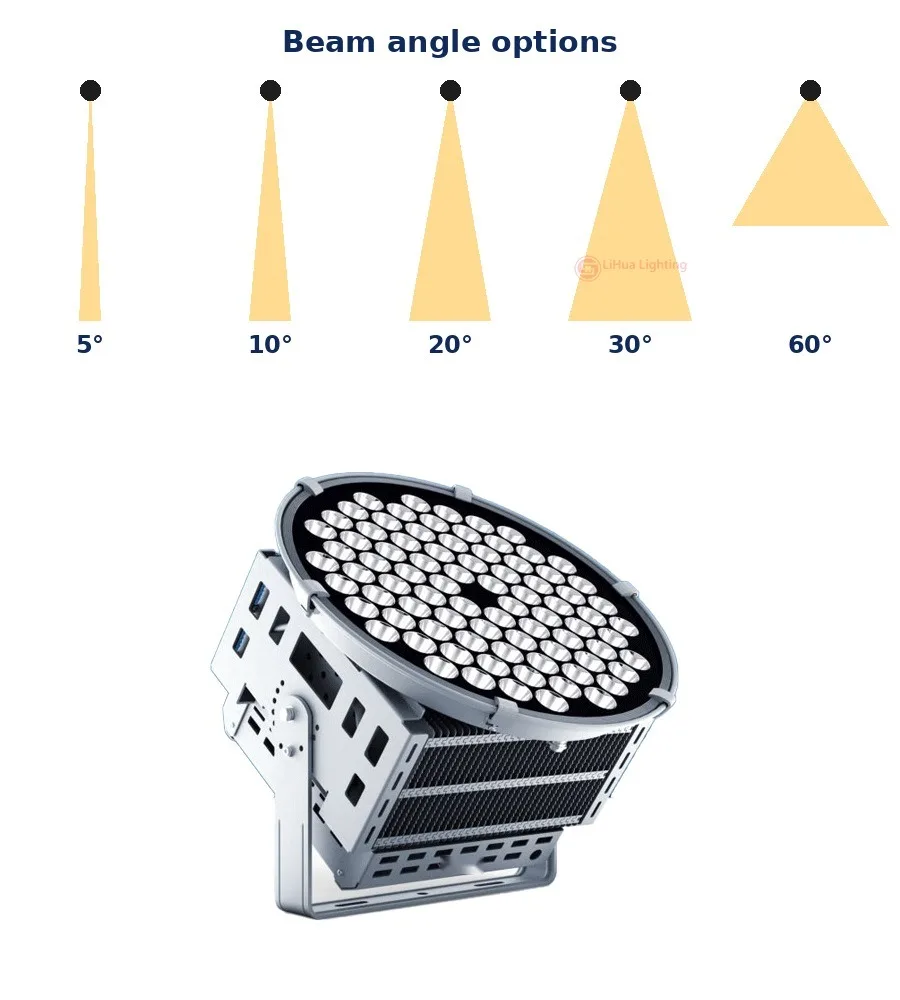

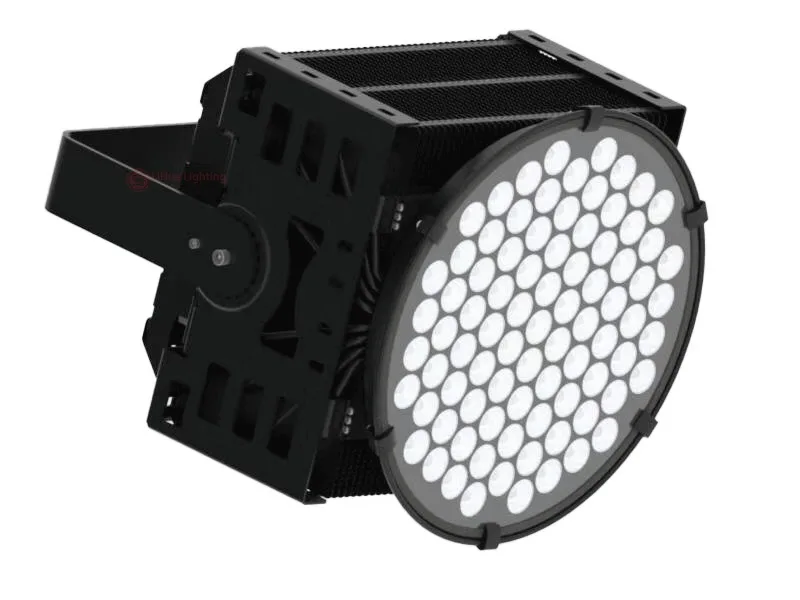

The LH-SMF is a stadium LED flood light and high mast flood light from 400W to 1500W, with a round multi-lens face, fin heatsink and adjustable U-bracket. Beam options of 5°/10°/20°/30°/60° cover sports fields, ports and large areas. Common sizes are 500W and the 1000W LED flood light; as a stadium LED flood light manufacturer, we tailor power, CCT and optics to each field.
Application & Lighting Layout

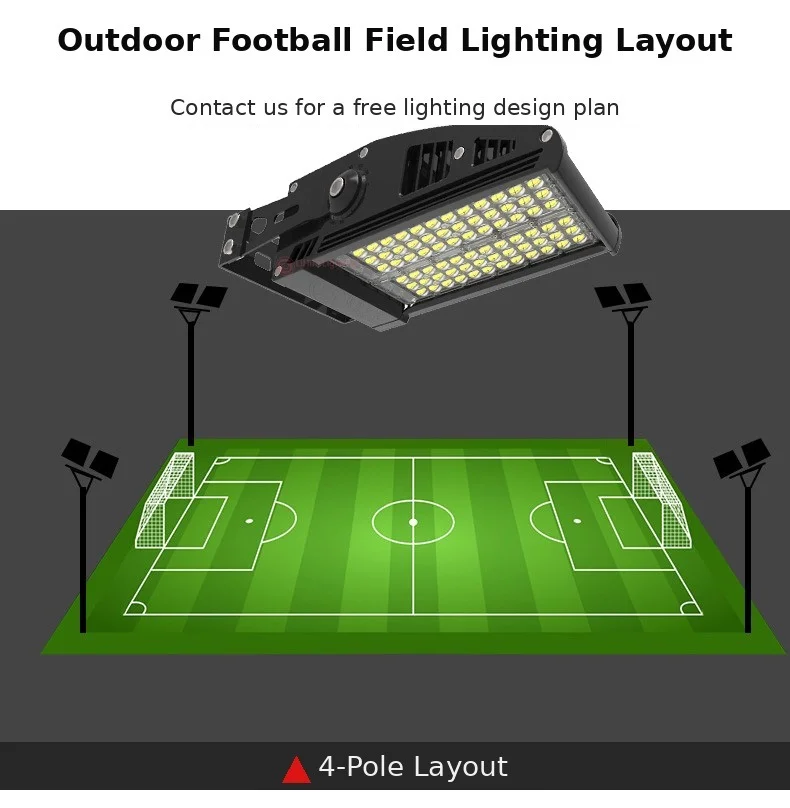

Typical 4-pole layout for an outdoor football field. Contact us for a free lighting design plan based on your field size and target lux level.
LH-SMF specifications
Common specs, customizable on request.
| Model | LH-SMF |
|---|---|
| Power | 400W–1500W (500W / 1000W common) |
| Luminous efficacy | 150–160 lm/W |
| Beam angle | 5° / 10° / 20° / 30° / 60° |
| CCT | 3000K–6500K |
| CRI | Ra ≥70 / ≥80 |
| Input voltage | AC 100–277V, 50/60Hz |
| Protection | IP66 |
| Housing | Die-cast aluminum, fin heatsink |
| Lens | Optical PC lens / tempered glass |
| Mounting | Adjustable U-bracket; high mast, pole or cross-arm |
| Surge protection | 10kV / 20kV |
| Lifespan | ≥50,000 h |
| Weight / dimensions | To be confirmed |
| Warranty | 2 years |
| Certifications | Available on request |
Specifications are for reference only. Please confirm with our sales team before ordering.
Related products
- LH-HB Fin Heatsink LED High Bay Light Series 100W–300W
- LH-UFO-HB UFO LED High Bay Light 100W–240W
- LH-EX Explosion-proof Design LED Gooseneck Lamp 30W–100W
See all LED Lighting or request a quote.
Ordering, MOQ and OEM/ODM
MOQ 200 pcs · Lead time 12–27 working days · Warranty 2 years
OEM / ODM: logo, housing colour, power, CCT and optics can be customized. Certifications for your target market are available on request.
Source factory since 2012 · How we build and test · OEM & ODM service · Buyer FAQ
FAQ
What is the minimum order quantity for the LH-SMF?
MOQ 200 pcs.
What is the lead time for the LH-SMF?
Lead time 12–27 working days. The exact schedule is confirmed with your order.
What warranty does the LH-SMF have?
2 years.
Can I order the LH-SMF under my own brand (OEM/ODM)?
Yes. Logo, housing colour, power, CCT and optics can be customized. Certifications for your target market are available on request.
How do I get a quotation?
Use the Get a Quote button on this page, message us on WhatsApp at +86 131 6873 9810, or email sales@mileds.com with the model, quantity and target market. Specifications are for reference only; please confirm with our sales team before ordering.
We reply to every inquiry within 24 hours.
Email: sales@mileds.com
