Hybrid & Off-grid Solar Inverters
Pure sine wave hybrid and off-grid solar inverters with MPPT charging and parallel operation, 5.5kW to 11kW.
Hover a product to see key specs. Common specs, customizable on request. Specifications are for reference only. Please confirm with our sales team before ordering.
InputL+N+PE, 208/220/230/240VAC; 154–264VAC (normal) / 185–264VAC (UPS)
Output voltage / frequency208/220/230/240VAC ±5% / 50/60Hz ±0.1%, pure sine wave, PF=1
Battery48Vdc; CV charge 56.4Vdc; float 54Vdc; lithium wake-up supported
VariantsRated output, Peak power, PV max input, Max PV current, Max PV / AC / total charge current, Size (D×W×H)…
Warranty1 year
TermsMOQ 200 pcs · 30 working days · 50–70% deposit

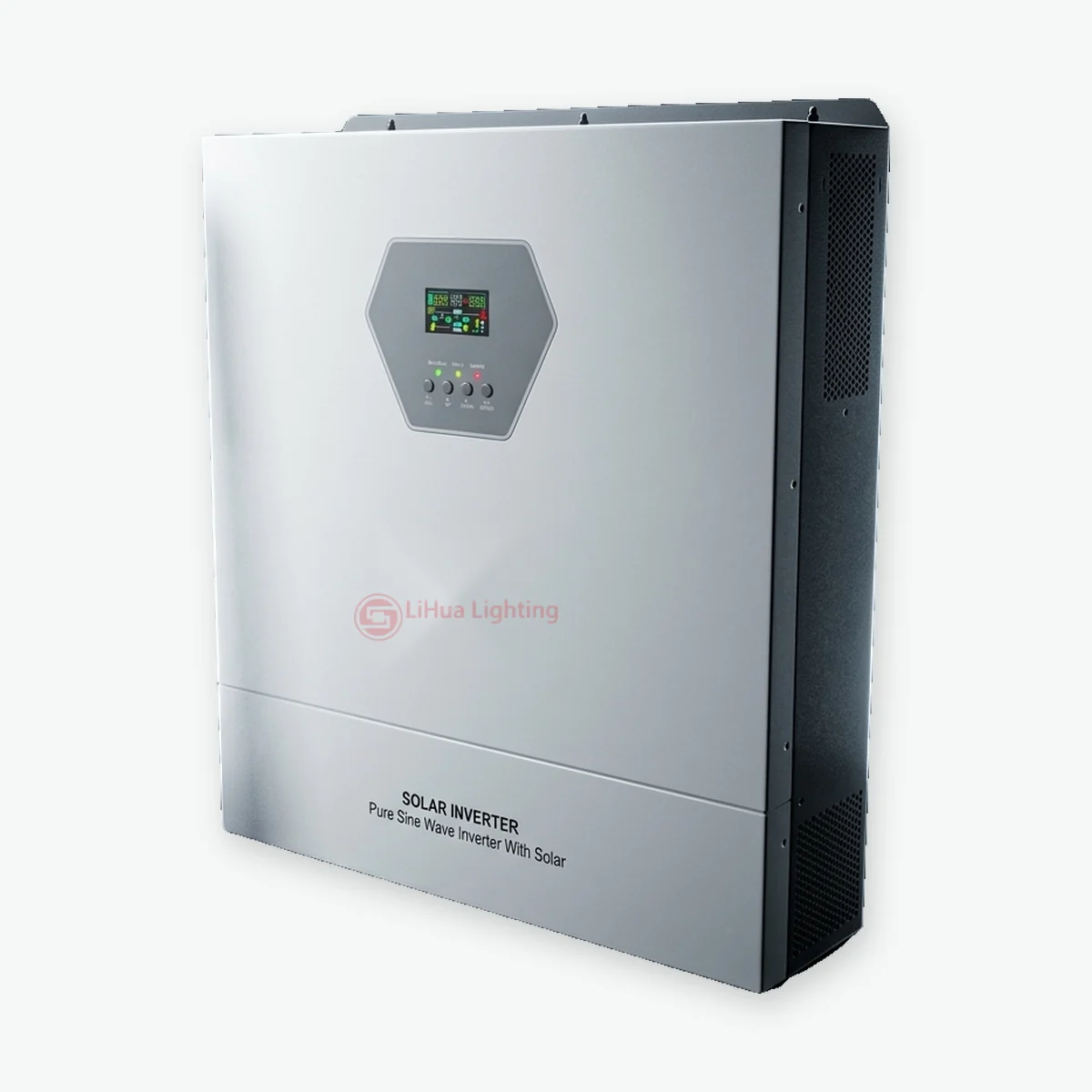

LH-A Series 6.2kW / 11kW Off-grid Solar Inverter (Parallel Version)
Get a quote
Rated output5500W, surge 11000VA
AC inputSingle phase L+N+PE, 220/230/240VAC; 90–280VAC / 170–280VAC; 50/60Hz auto
AC output220/230/240VAC ±5%, 50/60Hz ±0.1%, pure sine wave; transfer 10ms typical
Peak efficiency>94%
Warranty1 year
TermsMOQ 200 pcs · 30 working days · 50–70% deposit
