MODEL LH-HB

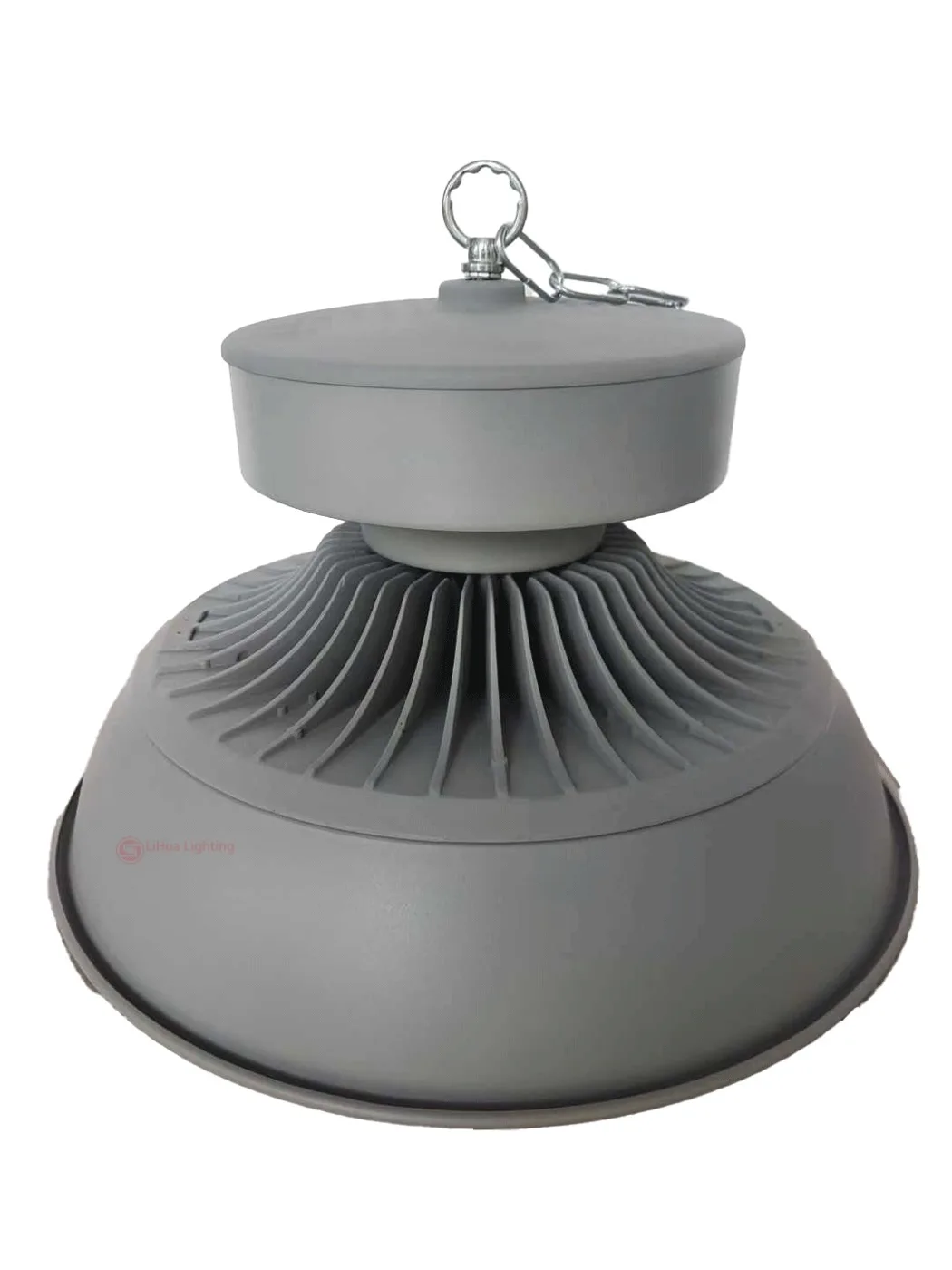

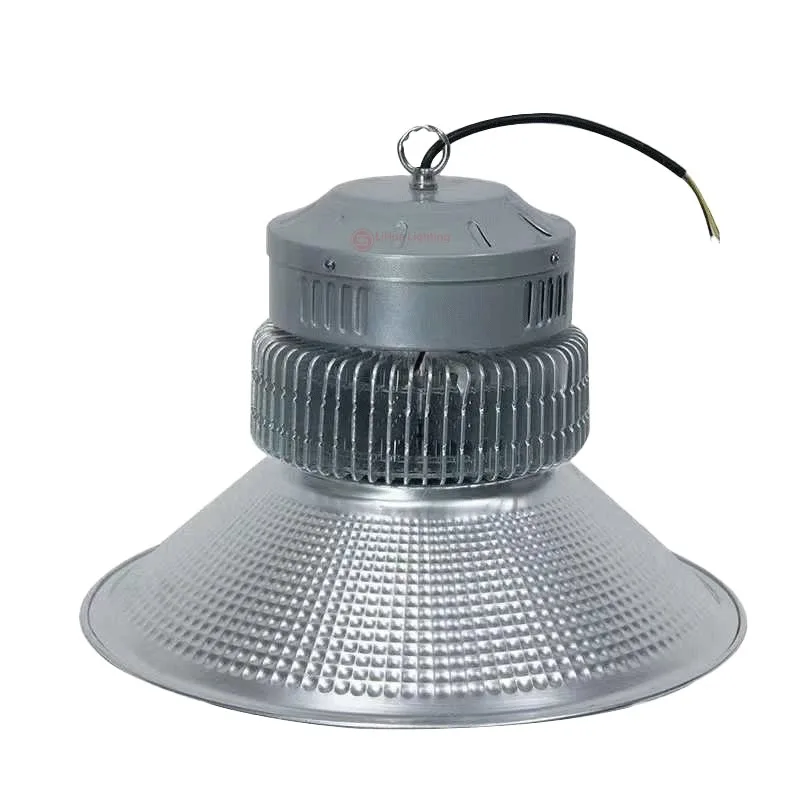

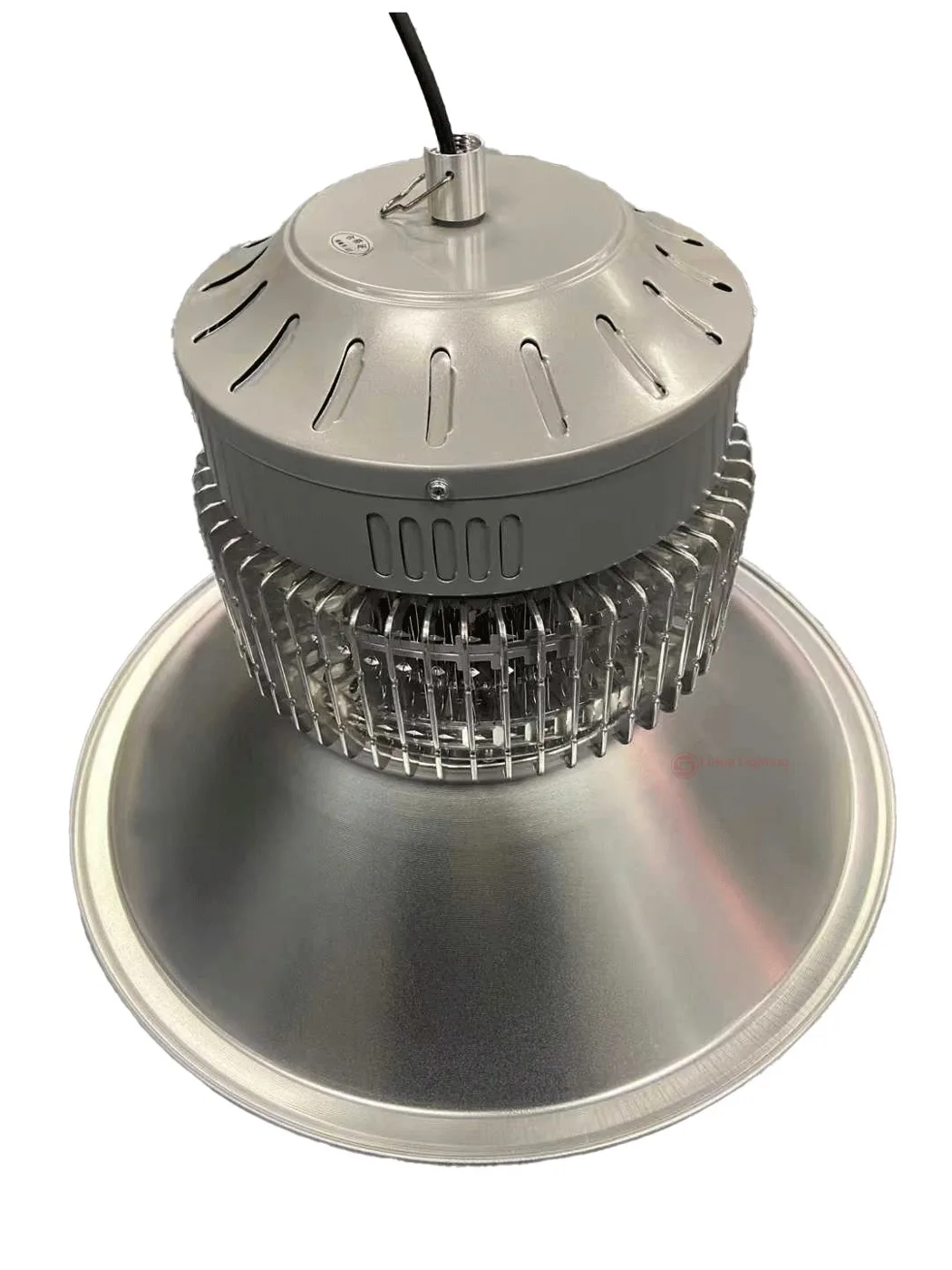

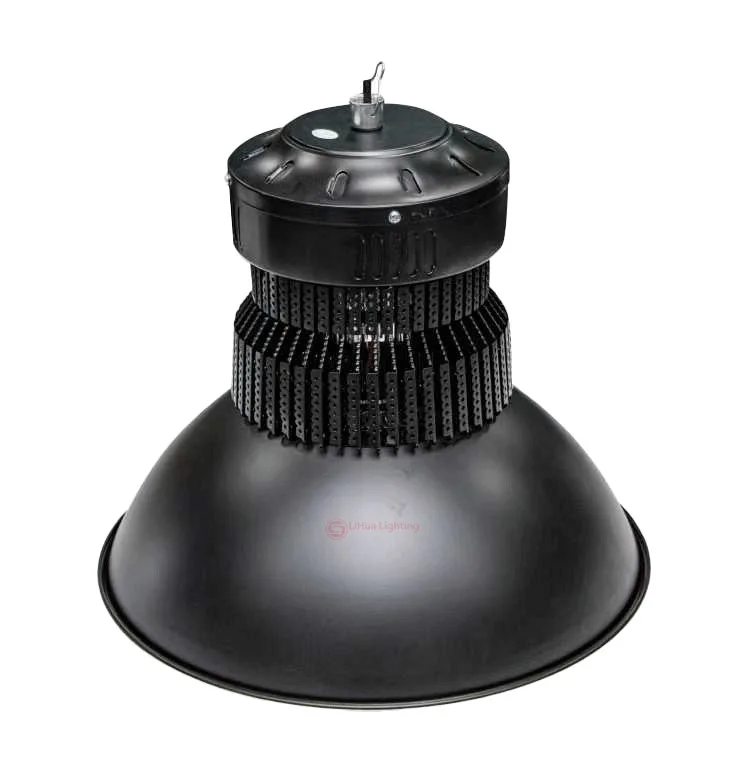

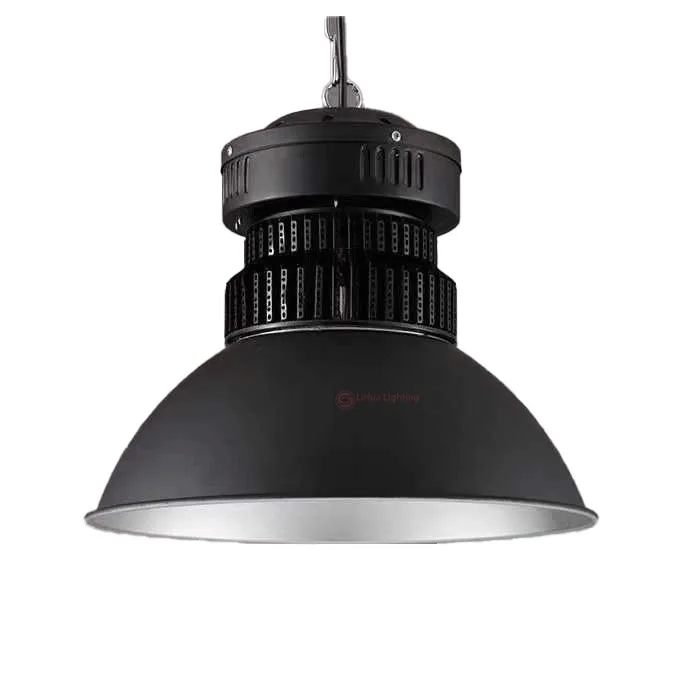

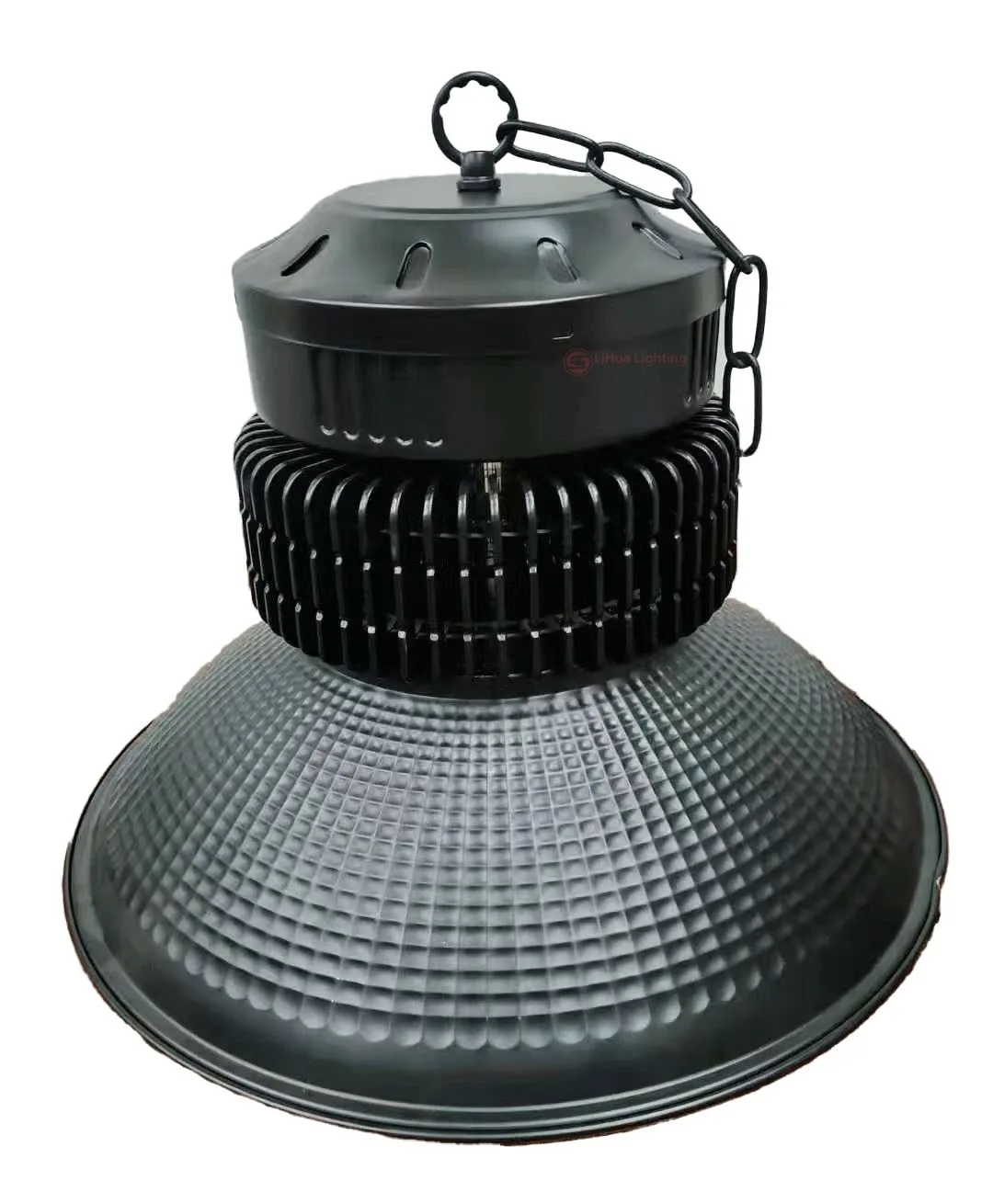

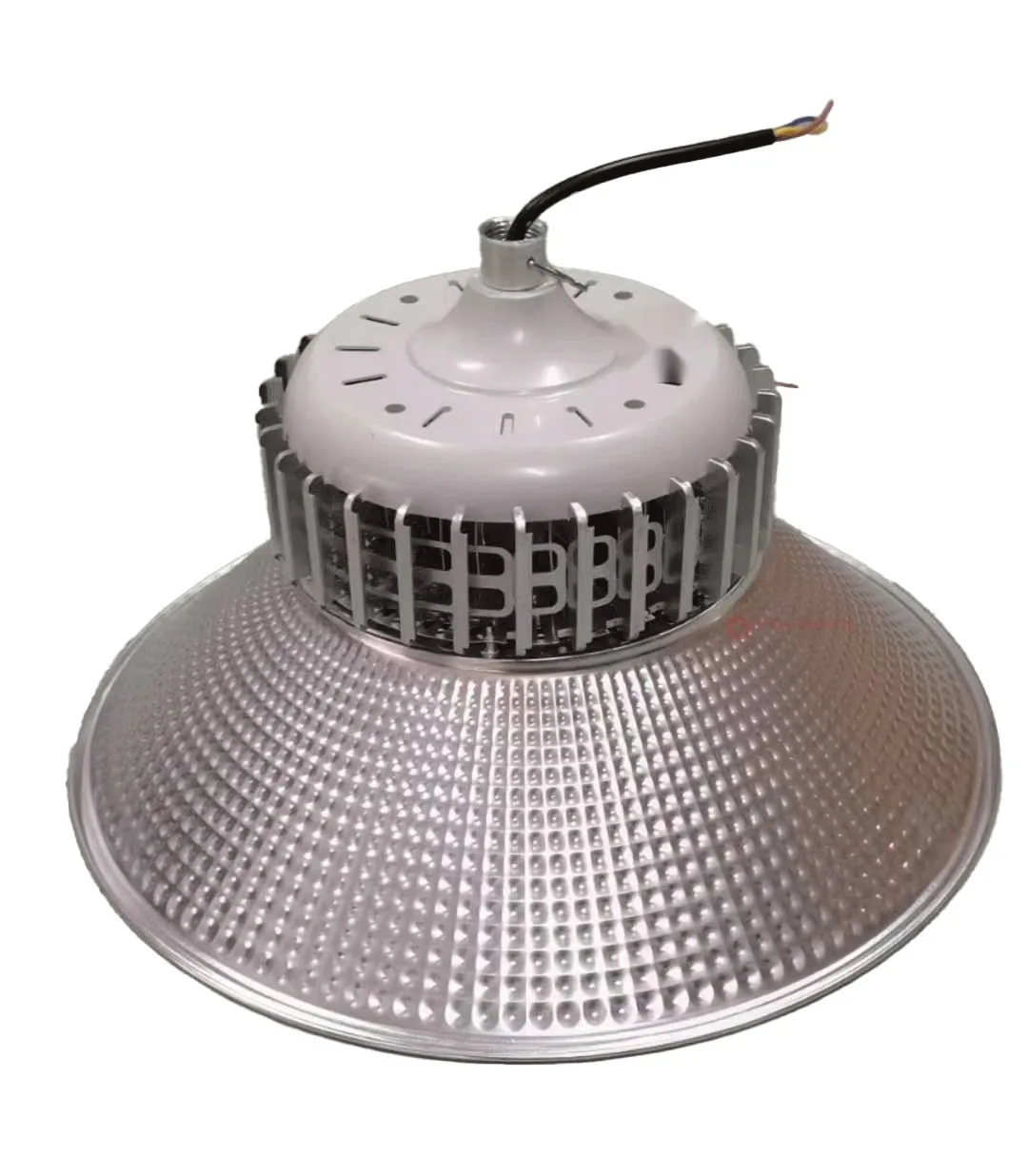

LH-HB Fin Heatsink LED High Bay Lights, 100W–300W (200W LED High Bay Light)

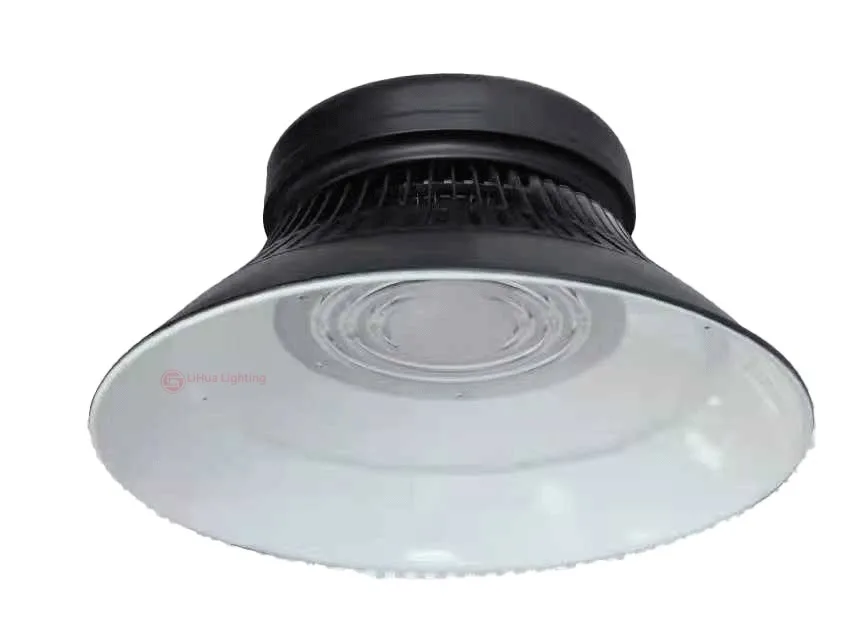

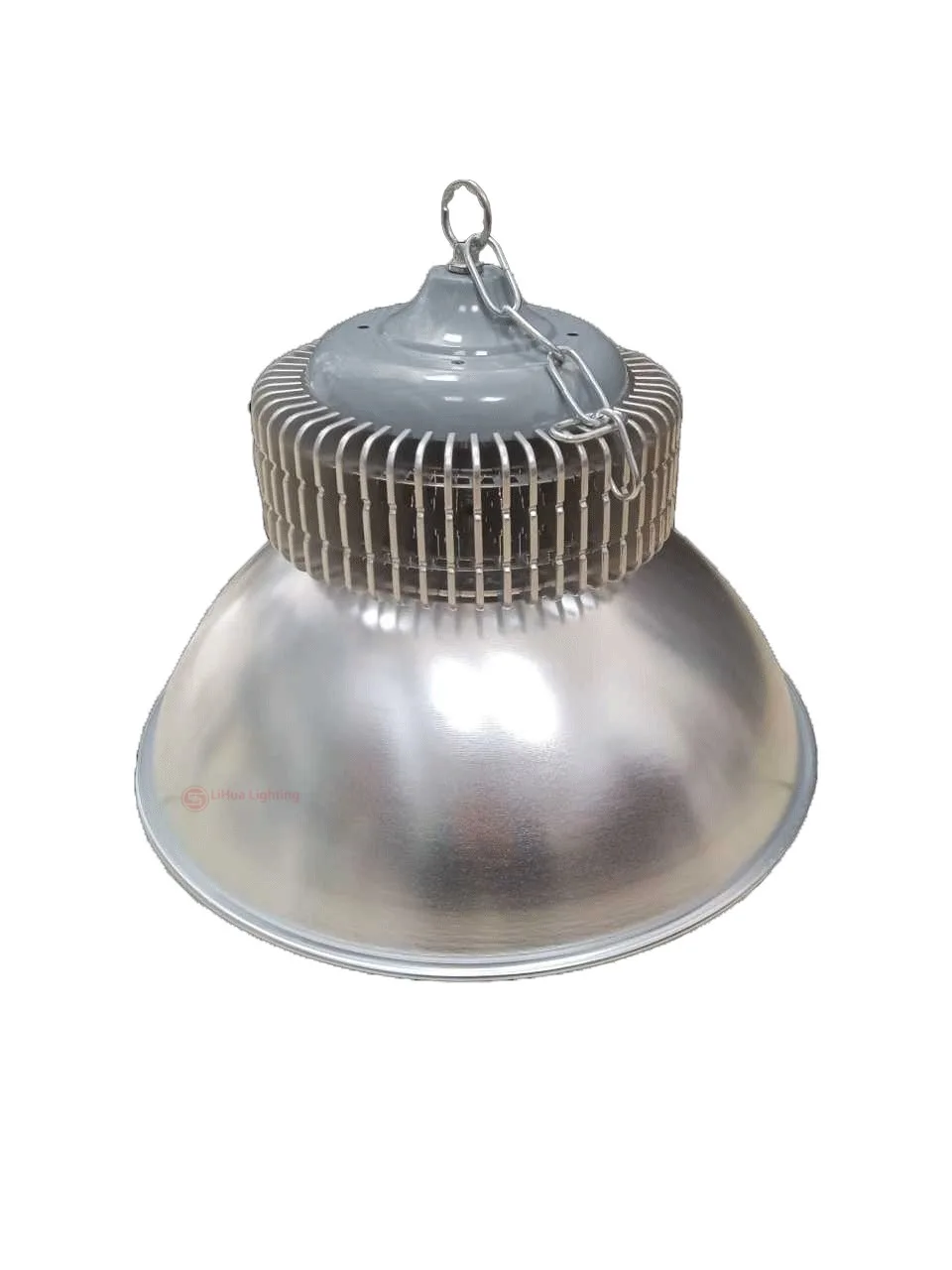

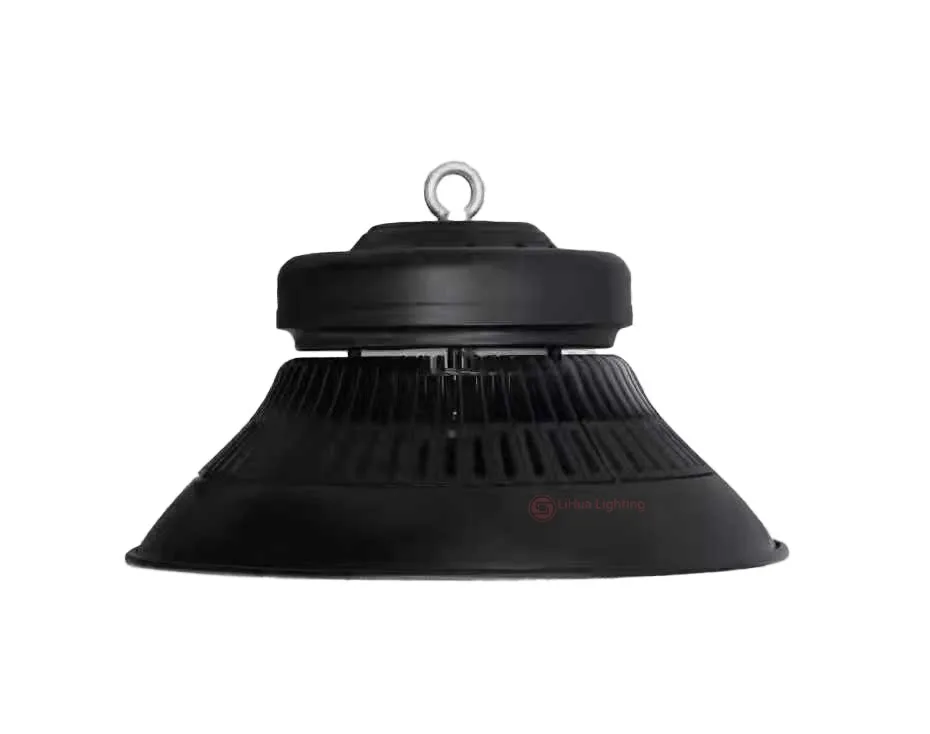

The LH-HB series covers 100W, 150W, 200W and 300W; the 200W LED high bay light is the usual pick for 8–12m ceilings. All use a fin heatsink, an aluminum or PC reflector and hook or chain mounting, in black, silver, grey or white.
Cooling fins for long running hours
Factories run lights for many hours a day, so a 100W to 300W LED high bay light with fin heatsink keeps LEDs cooler. As an LED high bay light for warehouses and factories, it mounts at 8–20m. As an LED high bay light manufacturer, LiHua customizes optics and finish. See all LED lighting.
LH-HB specifications
Common specs, customizable on request.
| Series | LH-HB |
|---|---|
| Power | 100W / 150W / 200W / 300W |
| Luminous efficacy | 130–160 lm/W |
| Reflector / beam | Aluminum or PC reflector; 60° / 90° / 120° |
| CCT | 3000K–6500K |
| CRI | Ra >70 / >80 |
| Power factor | > 0.95 |
| Input voltage | AC 85–277V |
| Protection | IP65 |
| Finish | Black / silver / grey / white |
| Mounting | Hook or chain; typical mounting height 8–20 m |
| Lifespan | ≥50,000 h |
| Weight / dimensions | To be confirmed |
| Warranty | 2 years |
| Certifications | Available on request |
Specifications are for reference only. Please confirm with our sales team before ordering.

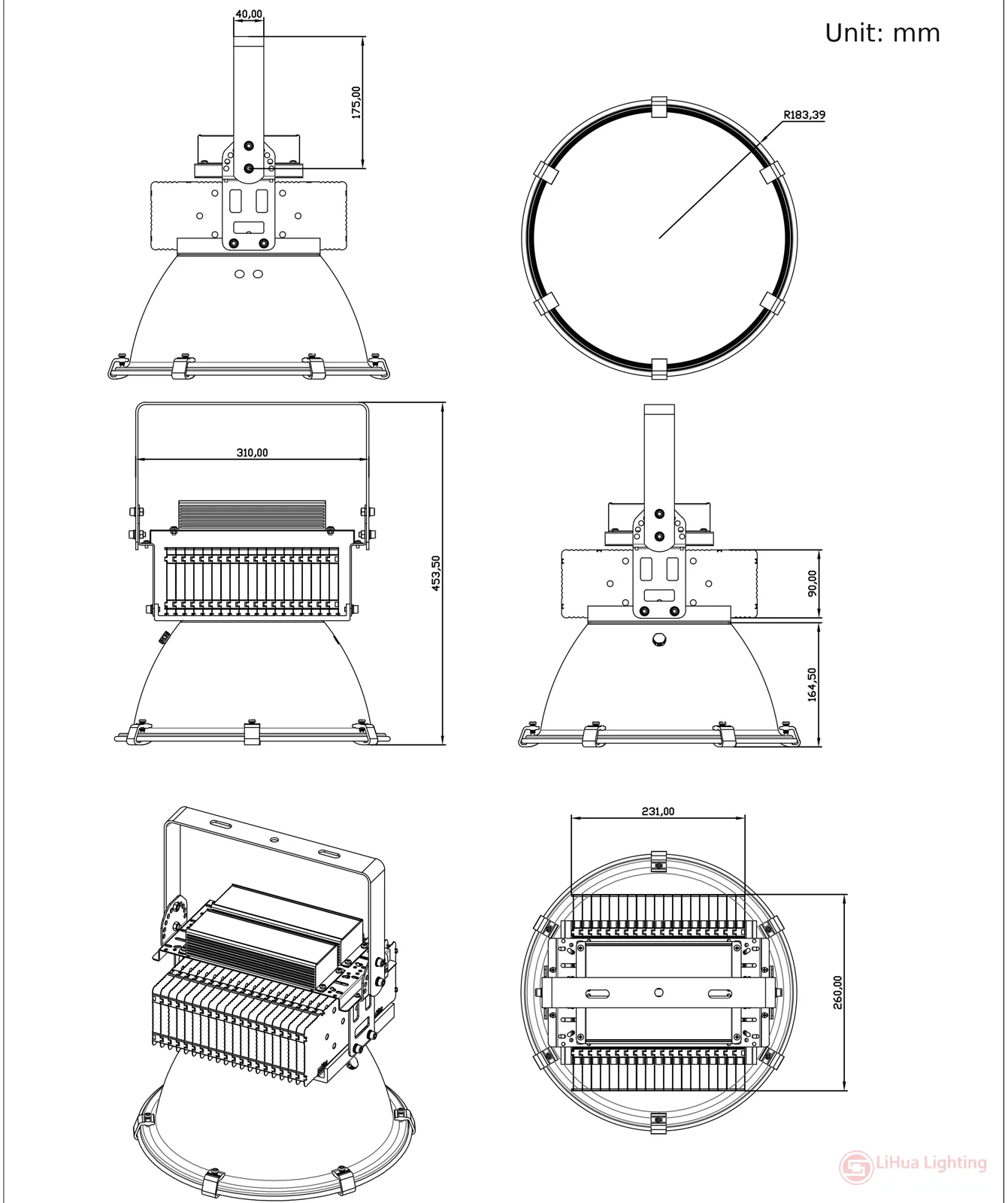

Structure & Dimensions – Big-reflector Version
Factory drawing data for the big-reflector fin high bay. Specifications are for reference only. Please confirm with our sales team before ordering.
| Overall height | 453.5 mm (incl. bracket) |
|---|---|
| Overall width | 310 mm |
| Reflector | R183.39 mm (approx. Ø367 mm) |
| Heat sink body | 231 × 260 mm |
| Bracket | 40 mm wide, 175 mm tall |

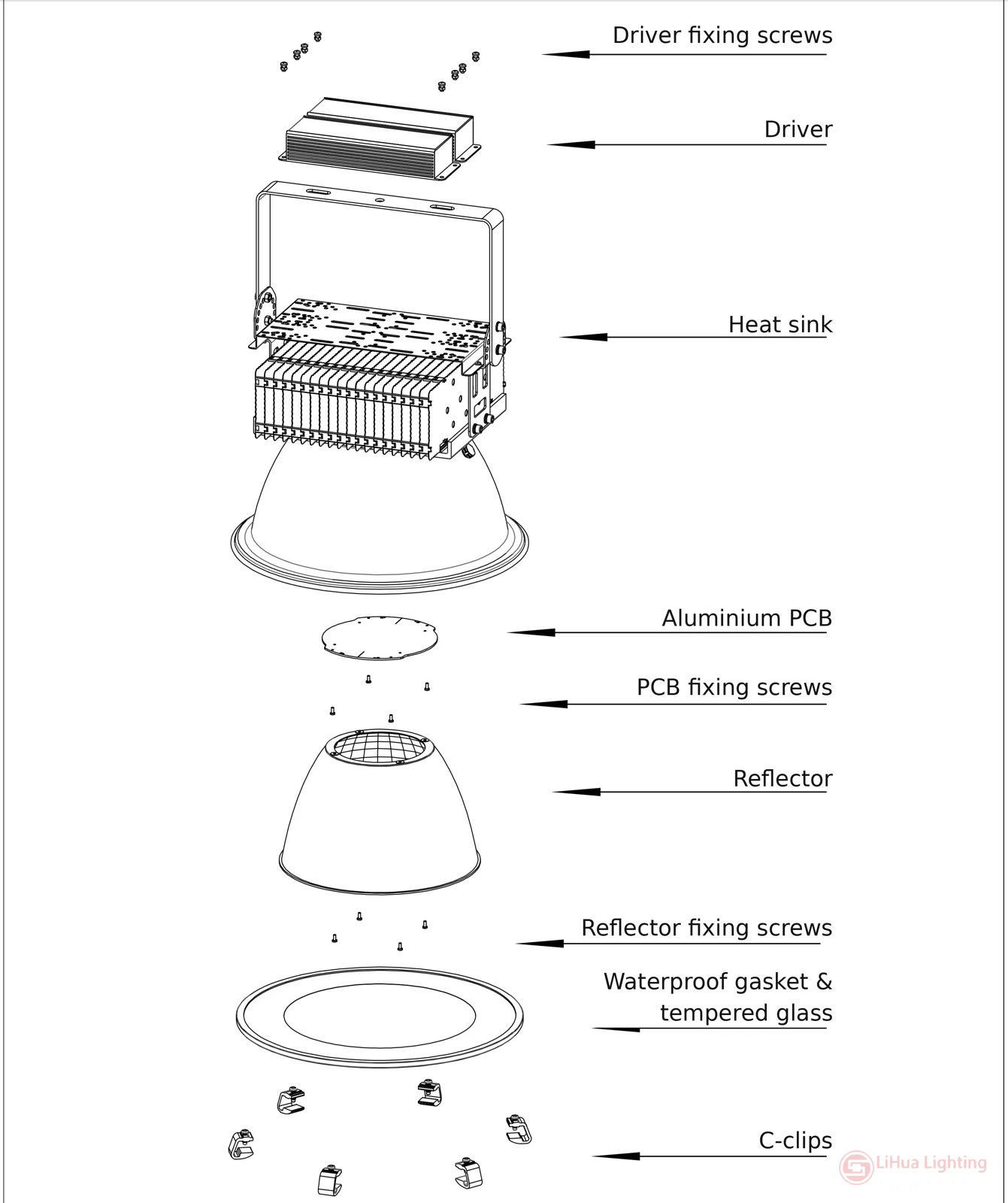

| Construction | Driver, fin heat sink, aluminium PCB, reflector, waterproof gasket & tempered glass, C-clips |

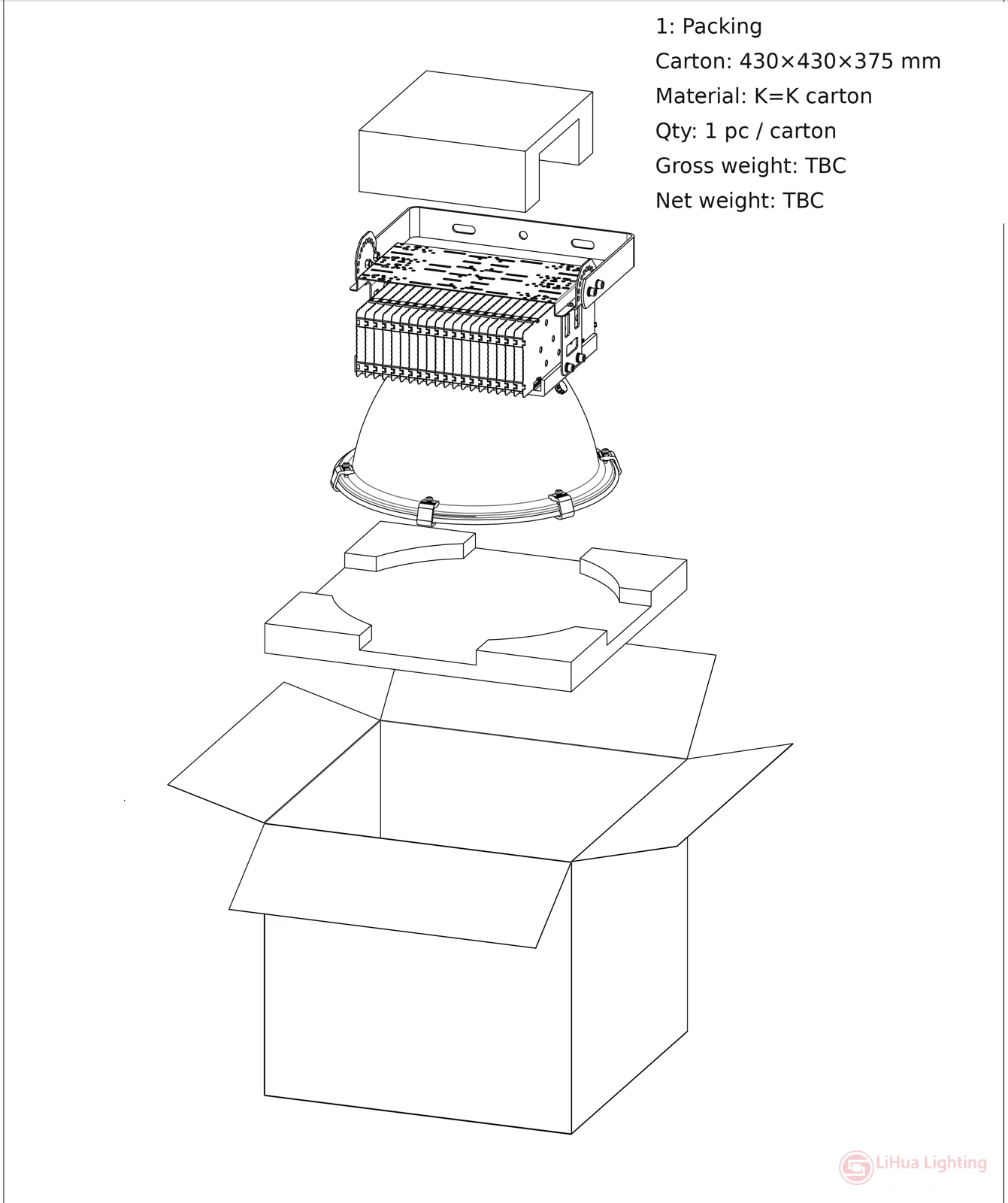

| Packing | K=K carton 430 × 430 × 375 mm, 1 pc / carton |
| Gross / net weight | To be confirmed |
Related products
- LH-UFO-HB UFO LED High Bay Light 100W–240W
- LH-EX Explosion-proof Design LED Gooseneck Lamp 30W–100W
- LH-WP Warehouse LED Pendant Light with Guard
See all LED Lighting or request a quote.
Ordering, MOQ and OEM/ODM
MOQ 200 pcs · Lead time 12–27 working days · Warranty 2 years
OEM / ODM: logo, housing colour, power, CCT and optics can be customized. Certifications for your target market are available on request.
Source factory since 2012 · How we build and test · OEM & ODM service · Buyer FAQ
FAQ
What is the minimum order quantity for the LH-HB?
MOQ 200 pcs.
What is the lead time for the LH-HB?
Lead time 12–27 working days. The exact schedule is confirmed with your order.
What warranty does the LH-HB have?
2 years.
Can I order the LH-HB under my own brand (OEM/ODM)?
Yes. Logo, housing colour, power, CCT and optics can be customized. Certifications for your target market are available on request.
How do I get a quotation?
Use the Get a Quote button on this page, message us on WhatsApp at +86 131 6873 9810, or email sales@mileds.com with the model, quantity and target market. Specifications are for reference only; please confirm with our sales team before ordering.
We reply to every inquiry within 24 hours.
Email: sales@mileds.com
