MODEL LH-A-6.2KW-P / LH-A-48-11KW-P

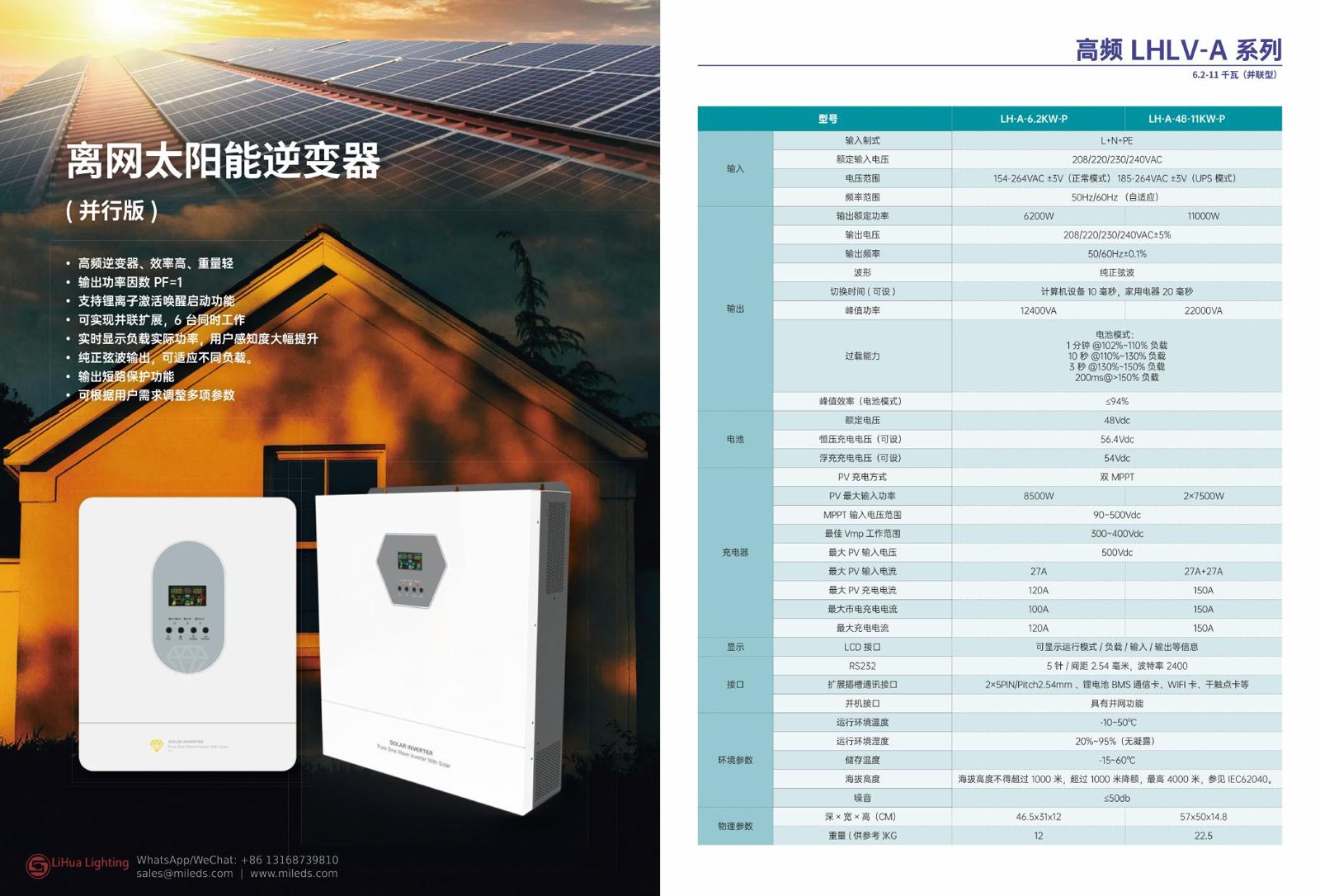

LH-A Series 11kW Off Grid Inverter and 6.2kW Model (Parallel Version)
The LH-A series is an 11kW off grid inverter (LH-A-48-11KW-P) with a 6.2kW sibling (LH-A-6.2KW-P). Both are high-frequency, pure sine wave units with dual MPPT, PF=1 and parallel operation for up to 6 units.
Two power levels, one platform
Pick the 6.2kW off grid solar inverter dual MPPT model for homes, or the 11kW off grid inverter parallel up to 6 units for workshops and farms. Both pair with 48V LiFePO4 banks such as our home energy storage batteries. Off-grid solar inverter OEM orders are available. See all hybrid and off-grid solar inverters.
LH-A-6.2KW-P / LH-A-48-11KW-P specifications
Common specs, customizable on request.
| Input | L+N+PE, 208/220/230/240VAC; 154–264VAC (normal) / 185–264VAC (UPS) |
|---|---|
| Output voltage / frequency | 208/220/230/240VAC ±5% / 50/60Hz ±0.1%, pure sine wave, PF=1 |
| Battery | 48Vdc; CV charge 56.4Vdc; float 54Vdc; lithium wake-up supported |
| MPPT range / optimum Vmp / max PV voltage | 90–500Vdc / 300–400Vdc / 500Vdc |
| Communication | RS232, expansion port, parallel port (up to 6 units) |
| Environment | Operating 10–50°C, humidity 20–95% non-condensing, altitude ≤4000m (derate above 1000m), noise ≤50dB |
| Warranty | 1 year |
| Item | LH-A-6.2KW-P | LH-A-48-11KW-P |
|---|---|---|
| Rated output | 6200W | 11000W |
| Peak power | 12400VA | 22000VA |
| PV max input | 8500W | 2 × 7500W |
| Max PV current | 27A | 27A + 27A |
| Max PV / AC / total charge current | 120A / 100A / 120A | 150A / 150A / 150A |
| Size (D×W×H) | 46.5×31×12cm | 57×50×14.8cm |
| Weight | 12kg | 22.5kg |
Specifications are for reference only. Please confirm with our sales team before ordering.
Related products
See all Hybrid & Off-grid Solar Inverters or request a quote.
Ordering, MOQ and OEM/ODM
MOQ 200 pcs · Lead time 30 working days · Samples 15–20 days · Payment: 50%–70% deposit, balance before shipment
OEM / ODM: logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
Source factory since 2012 · How we build and test · OEM & ODM service · Buyer FAQ
FAQ
What is the minimum order quantity for the LH-A-6.2KW-P / LH-A-48-11KW-P?
MOQ 200 pcs.
What is the lead time for the LH-A-6.2KW-P / LH-A-48-11KW-P?
Lead time 30 working days; samples 15–20 days. The exact schedule is confirmed with your order.
What are the payment terms?
Payment terms: 50%–70% deposit, balance before shipment.
What warranty does the LH-A-6.2KW-P / LH-A-48-11KW-P have?
1 year.
Can I order the LH-A-6.2KW-P / LH-A-48-11KW-P under my own brand (OEM/ODM)?
Yes. Logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
How do I get a quotation?
Use the Get a Quote button on this page, message us on WhatsApp at +86 131 6873 9810, or email sales@mileds.com with the model, quantity and target market. Specifications are for reference only; please confirm with our sales team before ordering.
We reply to every inquiry within 24 hours.
Email: sales@mileds.com
