MODEL LH-ALL485500PRO

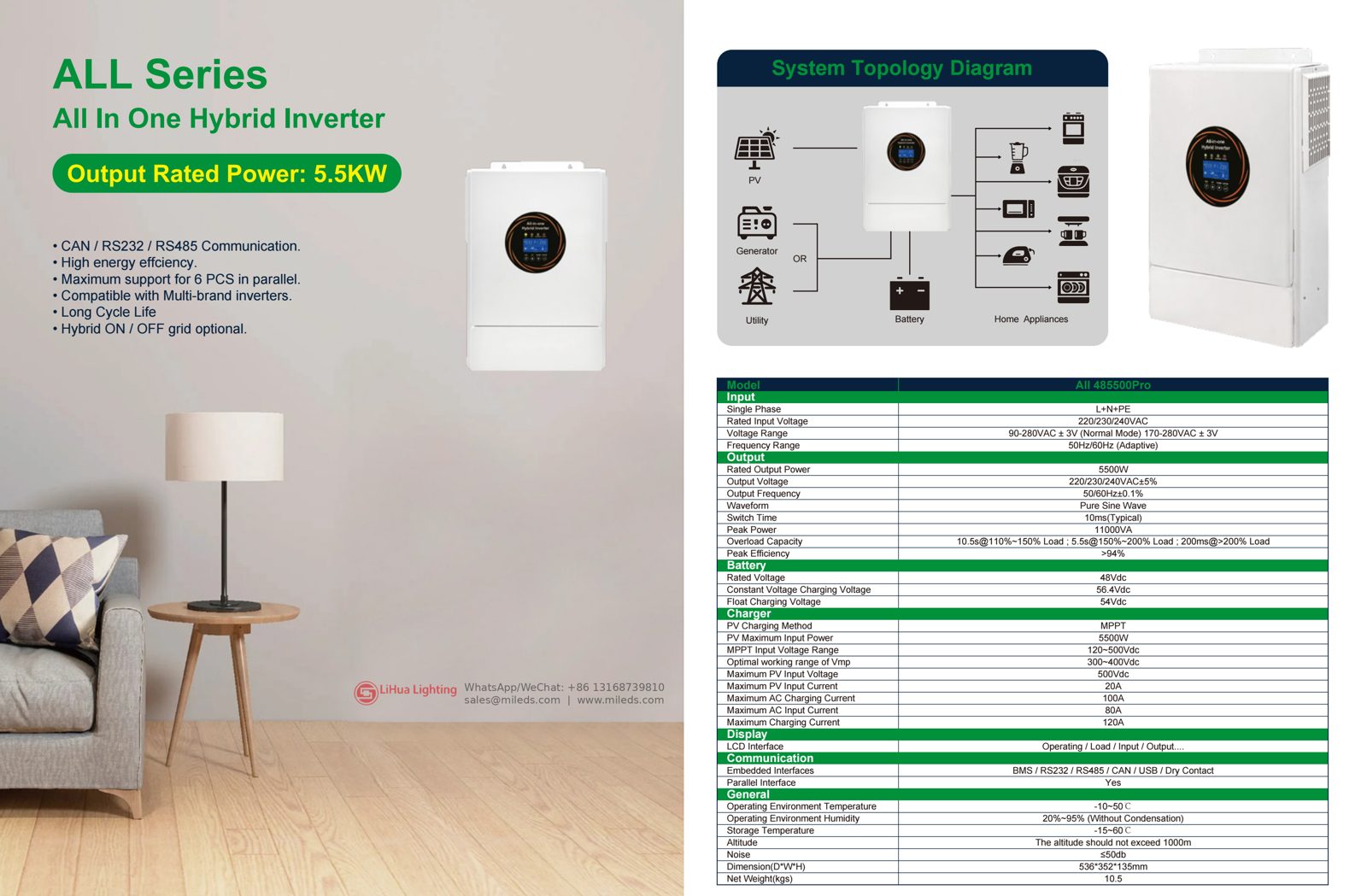

LH-ALL485500PRO 5.5kW Hybrid Inverter (48V)
The LH-ALL485500PRO is a 5.5kW hybrid inverter for 48V batteries, with an MPPT range of 120–500Vdc, pure sine wave output, CAN/RS232/RS485 ports and parallel operation for up to 6 units, on or off grid.
A 48V hybrid inverter for LiFePO4 banks
This 48V hybrid inverter reads battery data over CAN/RS485, so a hybrid solar inverter with CAN/RS485 battery communication can manage charging of our home energy storage batteries precisely. OEM orders with your brand on the inverter are welcome. See all hybrid and off-grid solar inverters.
LH-ALL485500PRO specifications
Common specs, customizable on request.
| Model | LH-ALL485500PRO |
|---|---|
| Rated output | 5500W, surge 11000VA |
| AC input | Single phase L+N+PE, 220/230/240VAC; 90–280VAC / 170–280VAC; 50/60Hz auto |
| AC output | 220/230/240VAC ±5%, 50/60Hz ±0.1%, pure sine wave; transfer 10ms typical |
| Peak efficiency | >94% |
| Battery | 48Vdc; CV 56.4Vdc; float 54Vdc |
| PV | Max 5500W; MPPT 120–500Vdc; optimum Vmp 300–400Vdc; max 500Vdc; max PV current 20A |
| Charging | Max AC charge 100A; max total charge 120A |
| Communication | BMS, RS232, RS485, CAN, USB, dry contact; LCD |
| Parallel | Up to 6 units |
| Environment | -10~50°C, humidity 20–95% non-condensing, altitude ≤1000m, noise ≤50dB |
| Size / net weight | 536×352×135mm / 10.5kg |
| Warranty | 1 year |
Specifications are for reference only. Please confirm with our sales team before ordering.
Related products
See all Hybrid & Off-grid Solar Inverters or request a quote.
Ordering, MOQ and OEM/ODM
MOQ 200 pcs · Lead time 30 working days · Samples 15–20 days · Payment: 50%–70% deposit, balance before shipment
OEM / ODM: logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
Source factory since 2012 · How we build and test · OEM & ODM service · Buyer FAQ
FAQ
What is the minimum order quantity for the LH-ALL485500PRO?
MOQ 200 pcs.
What is the lead time for the LH-ALL485500PRO?
Lead time 30 working days; samples 15–20 days. The exact schedule is confirmed with your order.
What are the payment terms?
Payment terms: 50%–70% deposit, balance before shipment.
What warranty does the LH-ALL485500PRO have?
1 year.
Can I order the LH-ALL485500PRO under my own brand (OEM/ODM)?
Yes. Logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
How do I get a quotation?
Use the Get a Quote button on this page, message us on WhatsApp at +86 131 6873 9810, or email sales@mileds.com with the model, quantity and target market. Specifications are for reference only; please confirm with our sales team before ordering.
