MODEL LH-51.2V100AH-LS
LH-51.2V100AH-LS 51.2V 100Ah LiFePO4 Battery, 5kWh Wall Mount

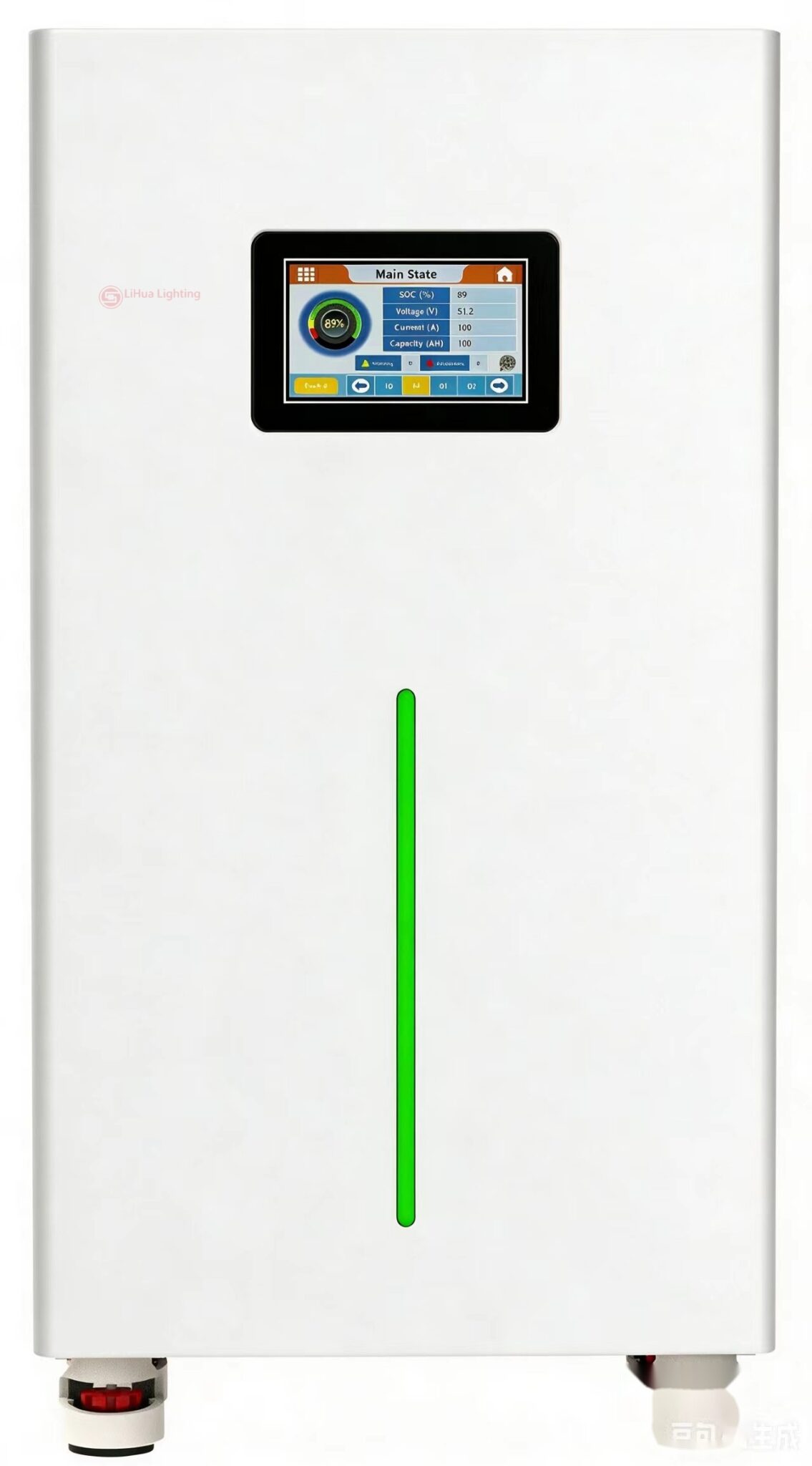

The LH-51.2V100AH-LS is a 51.2V 100Ah LiFePO4 battery with a touch screen, holding 5.12kWh in a wall-mounted case. Installers often list it as a 48V 100Ah wall mount battery, because it works on 48V inverter systems; it talks RS232/RS485/CAN and offers Bluetooth/WiFi monitoring.
A 5kWh wall mount battery for home solar
A 5kWh wall mount battery for home solar suits apartments, small homes and shops that need evening backup without giving up floor space. For brands, this LiFePO4 battery pack is available as a 48V wall mount battery OEM project with your logo and casing color. See the inverter compatibility list and the full range of home energy storage batteries.

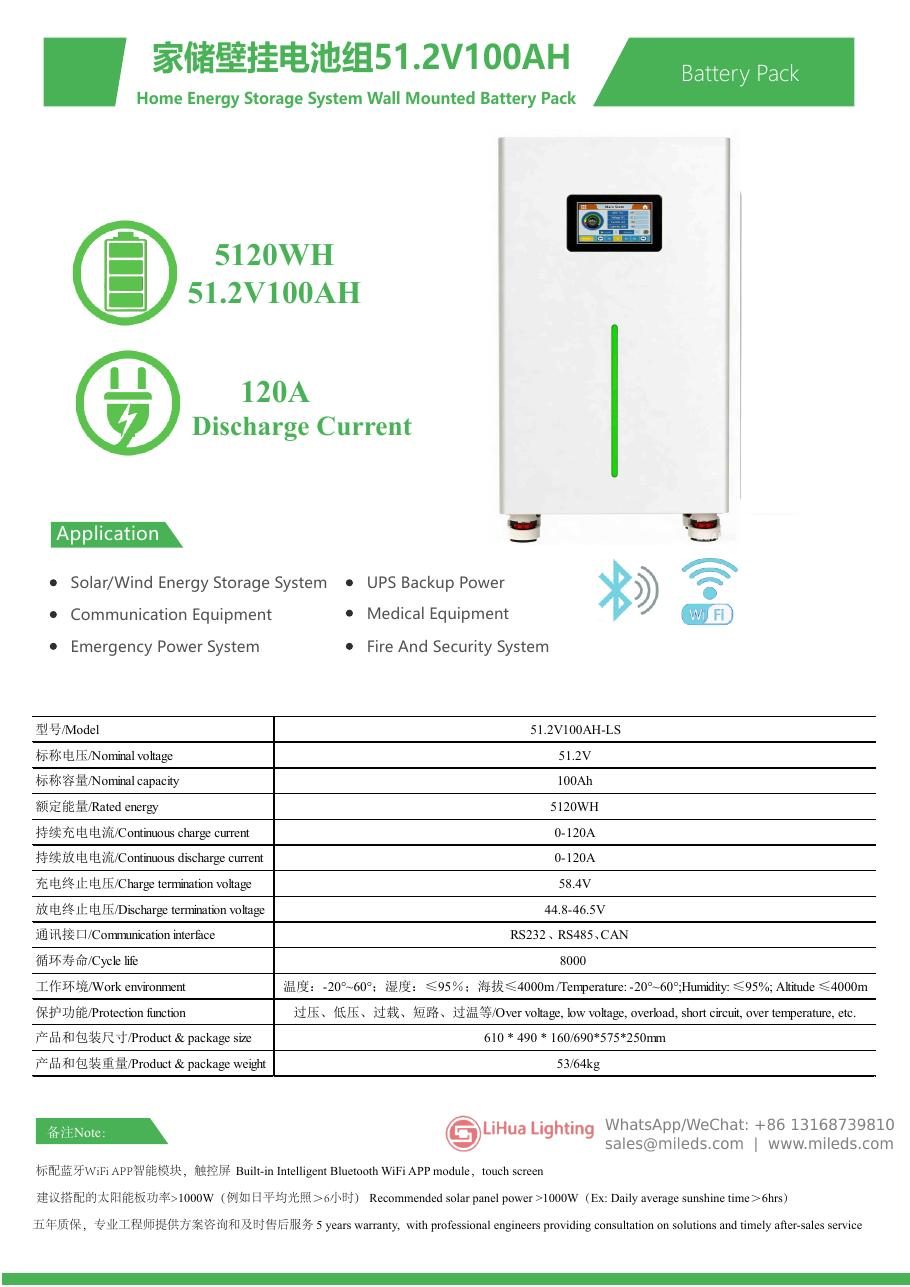

LH-51.2V100AH-LS specifications
Common specs, customizable on request.
| Model | LH-51.2V100AH-LS |
|---|---|
| Type | Wall-mounted |
| Cell | Grade A LiFePO4 (LFP); cells sourced from tier-1 manufacturers such as CATL, EVE, Sunwoda, CALB, Ganfeng |
| Nominal voltage | 51.2V |
| Capacity | 100Ah |
| Energy | 5120Wh |
| Charge / discharge current | 0–120A / 0–120A |
| Charge / discharge cut-off | 58.4V / 44.8–46.5V |
| Communication | RS232, RS485, CAN; Bluetooth & WiFi |
| Cycle life | 6000 (tested under industry standard conditions) |
| Operating environment | -20~60°C, humidity ≤95%, altitude ≤4000m |
| Protection | Over-voltage, low-voltage, overload, short circuit, over-temperature |
| Recommended PV | >1000W |
| Display | Touch screen |
| Product size | 610×490×160mm |
| Package size | 690×575×250mm |
| Net / gross weight | 53 / 64kg |
| Warranty | 3–5 years |
Specifications are for reference only. Please confirm with our sales team before ordering.
Related products
- LH-51.2V200AH-LS 51.2V 200Ah Wall-mounted Home Battery (10.24kWh)
- LH-YD51.2V300AH 51.2V 300Ah Mobile Home Battery on Wheels (15.36kWh)
- LH-51.2V314AH-LS 51.2V 314Ah Mobile Home Battery (16kWh)
See all Energy Storage Batteries or request a quote.
Ordering, MOQ and OEM/ODM
MOQ 200 pcs · Lead time 30 working days · Samples 15–20 days · Payment: 50%–70% deposit, balance before shipment
OEM / ODM: logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
Source factory since 2012 · How we build and test · OEM & ODM service · Buyer FAQ
FAQ
What is the minimum order quantity for the LH-51.2V100AH-LS?
MOQ 200 pcs.
What is the lead time for the LH-51.2V100AH-LS?
Lead time 30 working days; samples 15–20 days. The exact schedule is confirmed with your order.
What are the payment terms?
Payment terms: 50%–70% deposit, balance before shipment.
What warranty does the LH-51.2V100AH-LS have?
3–5 years.
Can I order the LH-51.2V100AH-LS under my own brand (OEM/ODM)?
Yes. Logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
How do I get a quotation?
Use the Get a Quote button on this page, message us on WhatsApp at +86 131 6873 9810, or email sales@mileds.com with the model, quantity and target market. Specifications are for reference only; please confirm with our sales team before ordering.
We reply to every inquiry within 24 hours.
