MODEL LH-51.2V200AH-LS

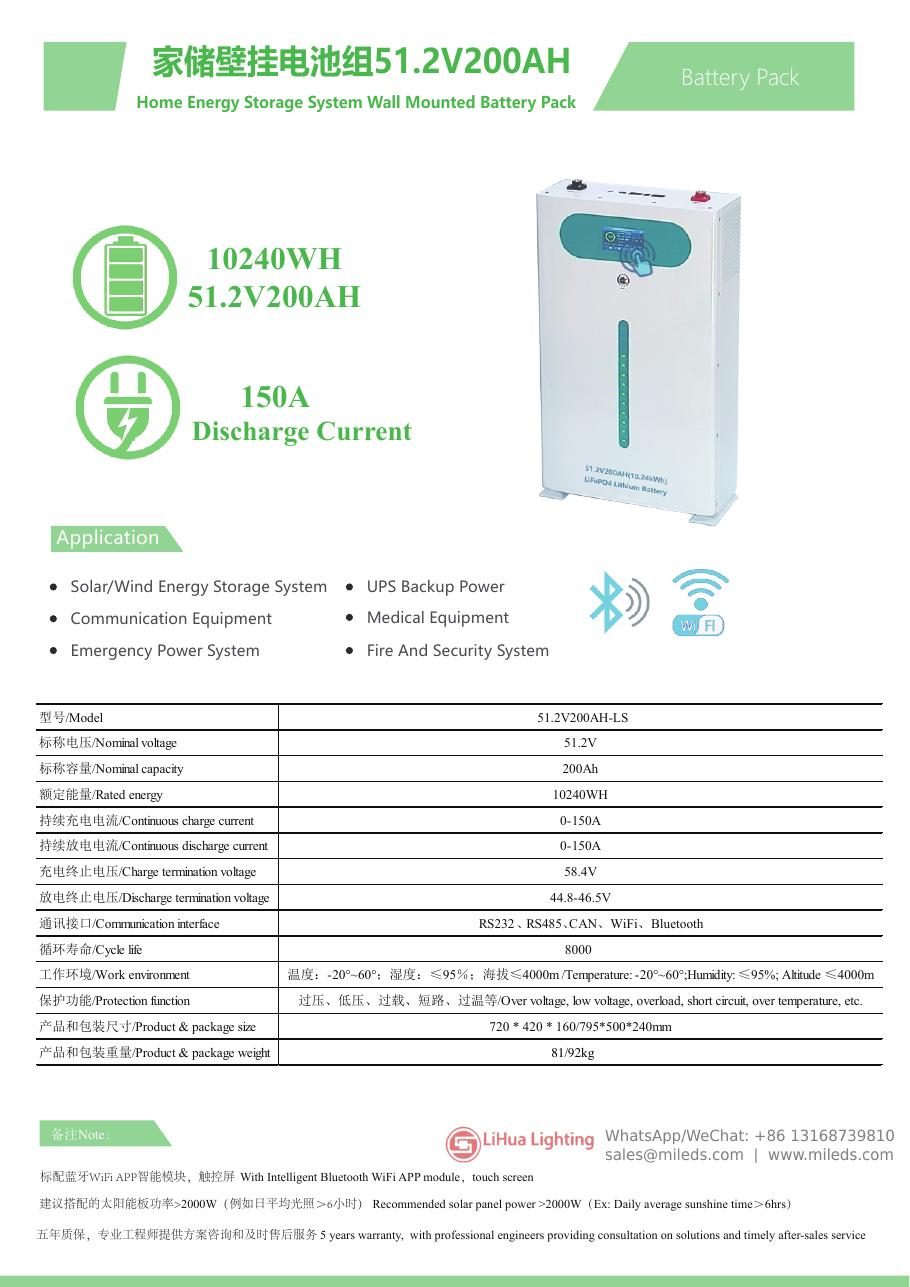

LH-51.2V200AH-LS 51.2V 200Ah LiFePO4 Battery, 10kWh Wall Mounted
The LH-51.2V200AH-LS is a 51.2V 200Ah LiFePO4 battery that stores 10.24kWh in one wall-mounted unit. It is our 10kWh wall mounted battery with a touch screen, 150A charge and discharge, RS232/RS485/CAN plus WiFi/Bluetooth, and a 6000-cycle rating.
Built for 48V hybrid systems
One 10kWh unit covers the evening load of a typical family home, and installers use it as a wall-mounted home battery for 48V hybrid inverters. As a LiFePO4 battery manufacturer, LiHua takes 51.2V 200Ah LiFePO4 battery OEM orders with your logo, casing and BMS settings. Check the inverter compatibility list or compare other home energy storage batteries.
LH-51.2V200AH-LS specifications
Common specs, customizable on request.
| Model | LH-51.2V200AH-LS |
|---|---|
| Type | Wall-mounted |
| Cell | Grade A LiFePO4 (LFP); cells sourced from tier-1 manufacturers such as CATL, EVE, Sunwoda, CALB, Ganfeng |
| Nominal voltage | 51.2V |
| Capacity | 200Ah |
| Energy | 10240Wh |
| Charge / discharge current | 0–150A / 0–150A |
| Charge / discharge cut-off | 58.4V / 44.8–46.5V |
| Communication | RS232, RS485, CAN, WiFi, Bluetooth |
| Cycle life | 6000 (tested under industry standard conditions) |
| Operating environment | -20~60°C, humidity ≤95%, altitude ≤4000m |
| Protection | Over-voltage, low-voltage, overload, short circuit, over-temperature |
| Recommended PV | >2000W |
| Display | Touch screen |
| Product size | 720×420×160mm |
| Package size | 795×500×240mm |
| Net / gross weight | 81 / 92kg |
| Warranty | 3–5 years |
Specifications are for reference only. Please confirm with our sales team before ordering.
Related products
- LH-YD51.2V300AH 51.2V 300Ah Mobile Home Battery on Wheels (15.36kWh)
- LH-51.2V314AH-LS 51.2V 314Ah Mobile Home Battery (16kWh)
- LH-51.2V628AH-LS 51.2V 628Ah Mobile Energy Storage Battery (32kWh)
See all Energy Storage Batteries or request a quote.
Ordering, MOQ and OEM/ODM
MOQ 200 pcs · Lead time 30 working days · Samples 15–20 days · Payment: 50%–70% deposit, balance before shipment
OEM / ODM: logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
Source factory since 2012 · How we build and test · OEM & ODM service · Buyer FAQ
FAQ
What is the minimum order quantity for the LH-51.2V200AH-LS?
MOQ 200 pcs.
What is the lead time for the LH-51.2V200AH-LS?
Lead time 30 working days; samples 15–20 days. The exact schedule is confirmed with your order.
What are the payment terms?
Payment terms: 50%–70% deposit, balance before shipment.
What warranty does the LH-51.2V200AH-LS have?
3–5 years.
Can I order the LH-51.2V200AH-LS under my own brand (OEM/ODM)?
Yes. Logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
How do I get a quotation?
Use the Get a Quote button on this page, message us on WhatsApp at +86 131 6873 9810, or email sales@mileds.com with the model, quantity and target market. Specifications are for reference only; please confirm with our sales team before ordering.
