MODEL LH-SLR

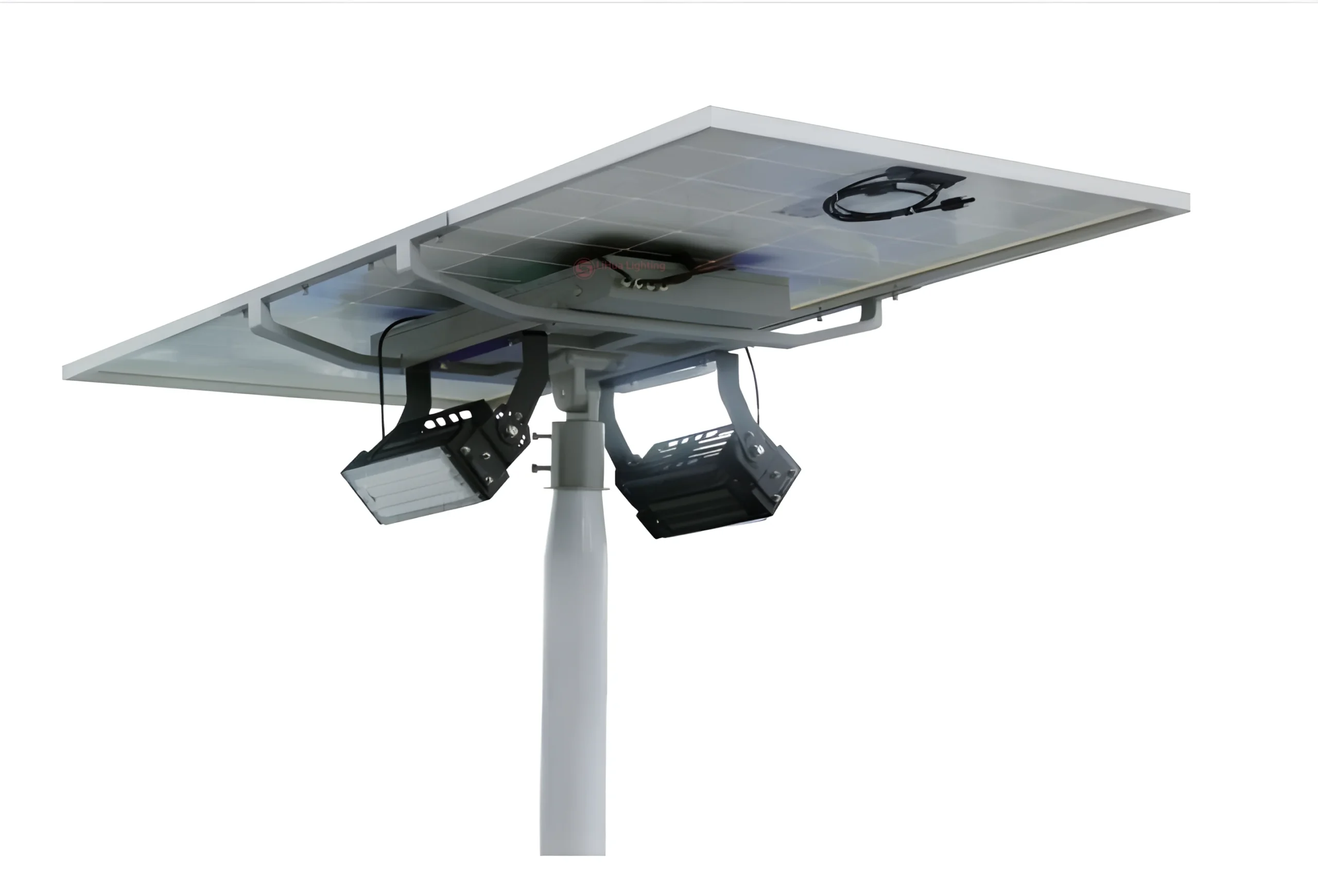

LH-SLR Dual-Head Solar High Mast Light & 200W Solar Flood Light
One pole, two LED heads, no trenching: the LH-SLR is a dual-head solar high mast light for highways, ports, logistics yards and sports fields. Choose 60W to 200W, with a monocrystalline panel on top and a LiFePO4 battery pack built in LiHua’s own factory.
Why project buyers choose the LH-SLR
Scales up to 200W on a single pole
Pick a wattage between 60W and 200W. The top configurations are sized for masts of 10–15 m or taller, where a small garden-type solar lamp would leave the ground too dark.
Two heads for 360-degree wide-angle coverage
The two LED heads face away from each other, so one pole covers both sides of a carriageway, quay or yard. You get 360-degree wide-angle coverage and fewer dark gaps between poles.
Battery box kept clear of LED heat

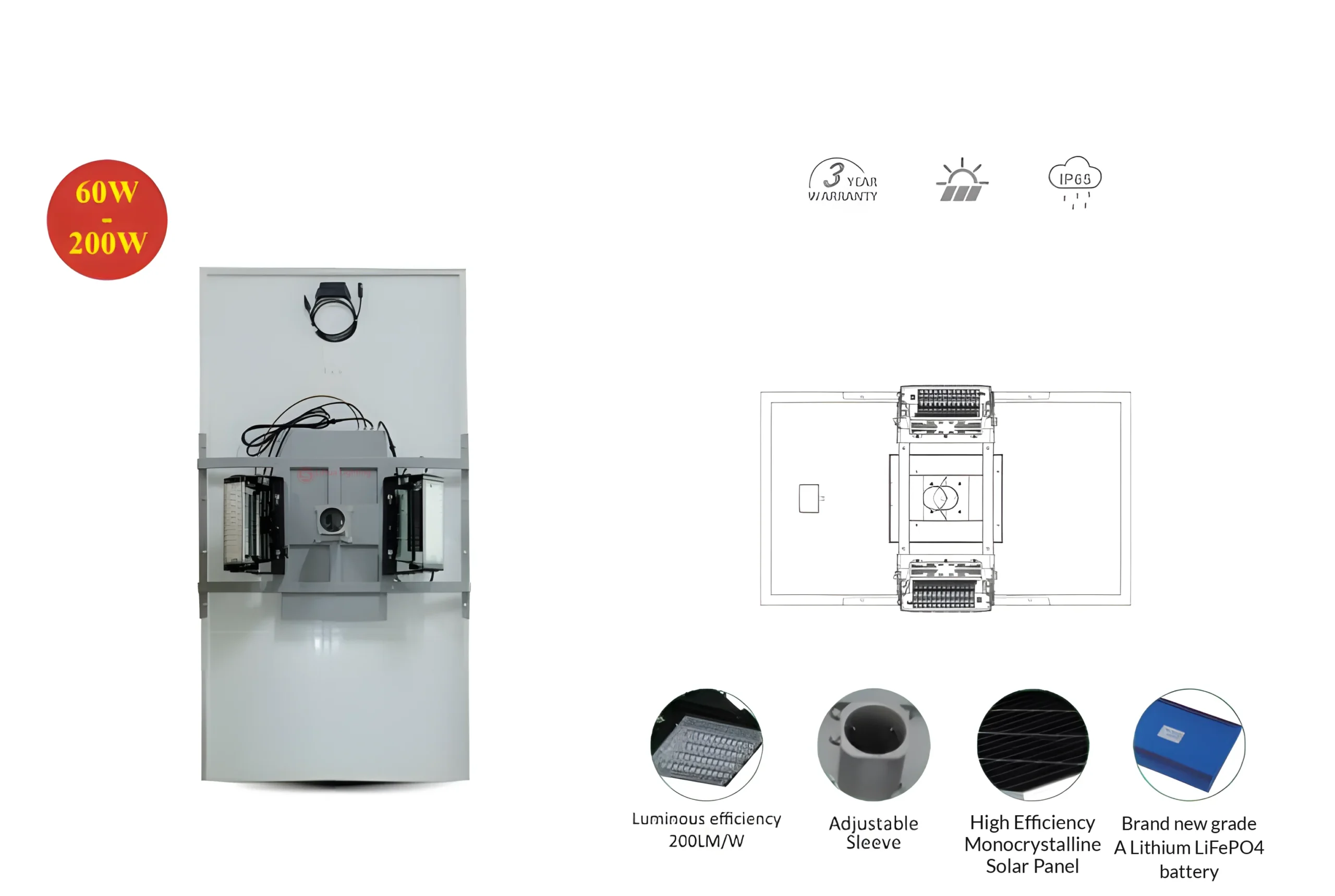

A large metal battery box is mounted under the solar panel, not inside the lamp heads. The cells stay apart from the heat the LEDs give off when running at high power.

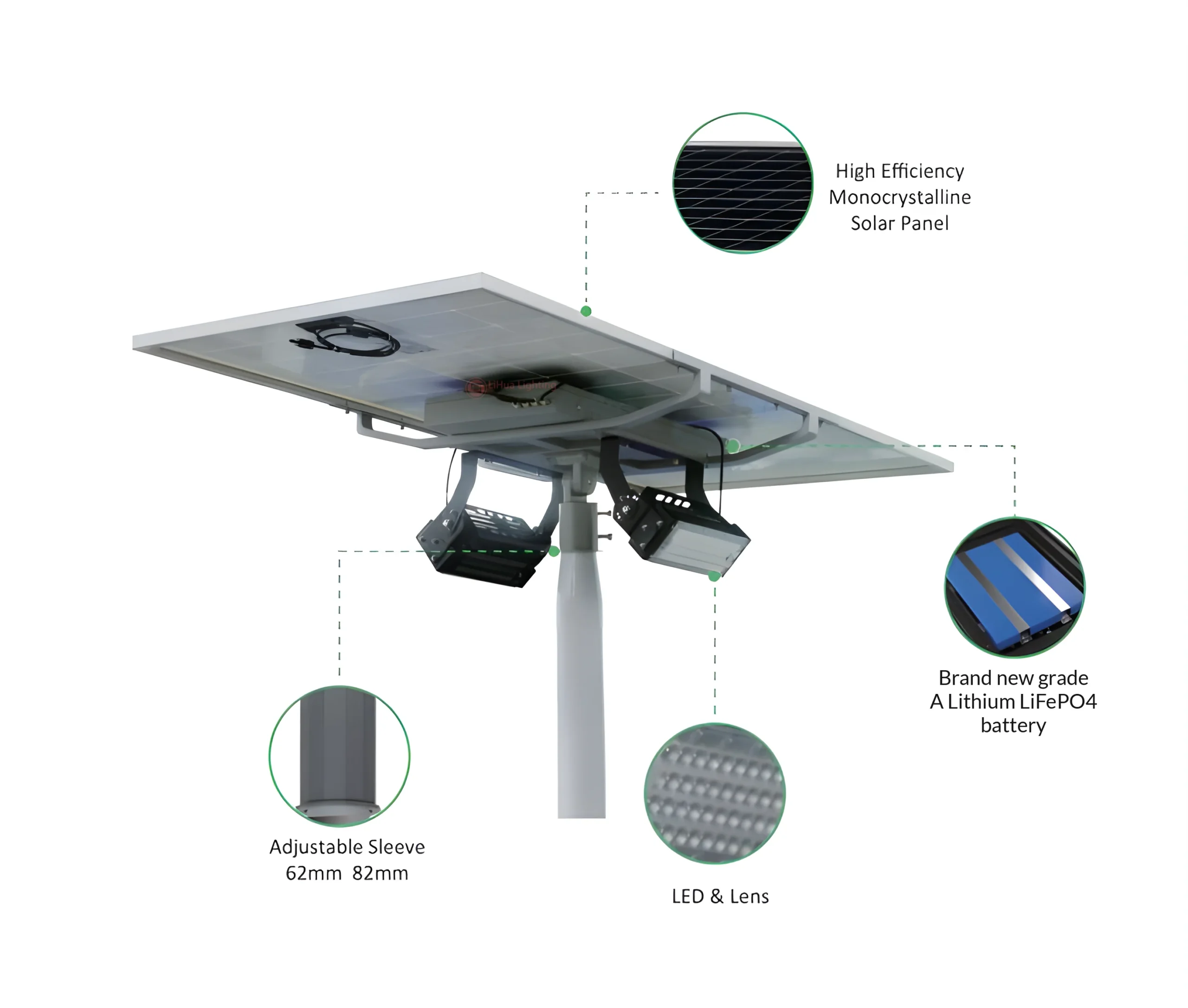

LiFePO4 packs from our own production line
LiHua assembles the LiFePO4 battery packs in-house, so we can size the capacity to your wattage, night-time schedule and local sunshine.
2-year warranty
Every LH-SLR is covered for 2 years, and the logo, wattage, panel and battery size can be customized for OEM and project orders.
Typical sites for a solar high mast light
Highway interchanges and toll areas · Container ports and quays · Logistics and truck yards · Sports fields, courts and training pitches · Car parks and plazas without grid power
LH-SLR specifications
Common specs, customizable on request.
| Model | LH-SLR100W / LH-SLR200W |
|---|---|
| Power | 60W–200W |
| Light source | LED + lens |
| Luminous efficacy | Up to 200 lm/W (common spec, customizable) |
| Solar panel | Monocrystalline; 18V–36V, 150W–480W by configuration |
| Battery | LiFePO4, capacity by configuration (12.8V / 25.6V) |
| Controller | MPPT |
| Lighting mode | 100% for 4 h + 30% for 8 h (programmable) |
| Autonomy | 2–3 rainy days |
| Protection | IP65 |
| Mounting | Adjustable sleeve Ø62 / Ø82 mm |
| Mounting height | 6–15 m |
| CCT | 3000K–6500K |
| LED lifespan | ≥50,000 h |
| Operating temperature | -20°C to +60°C |
| Warranty | 2 years |
| Certifications | Available on request |
| Weight / dimensions | To be confirmed |
Specifications are for reference only. Please confirm with our sales team before ordering.
FAQ: LH-SLR solar high mast light
What pole height does the LH-SLR suit?
The 60W–200W range covers poles from about 6 m up to 15 m. For masts of 10–15 m or more, choose the higher-wattage versions; send us the pole height and area size and we will recommend a wattage.
Can a 200W solar flood light light a sports field?
For training pitches, courts and multi-use areas, yes: each pole lights in two directions. For match-level lighting, share the field size and target lux so our engineers can check the pole layout before you order.
What are the warranty, MOQ and lead time?
2-year warranty, MOQ 200 pcs and a lead time of 12–27 working days. Certifications for your target market are available on request.
Related products
- LH-4401–4501 Solar Street Lights, 4–12m Poles
- LH-5801–5901 Double-arm Solar Street Lights, 7–12m
- LH-5001–5101 Solar Street Lights, 4–12m Poles
See all Solar Street & Flood Lights or request a quote.
Ordering, MOQ and OEM/ODM
MOQ 200 pcs · Lead time 12–27 working days · Warranty 2 years
OEM / ODM: logo, power, panel, battery capacity and lighting mode can be customized. Certifications for your target market are available on request.
