MODEL LH-RL402 / LH-RL403
LH-RL400 Rounded LED Street Light, 2–3 Modules

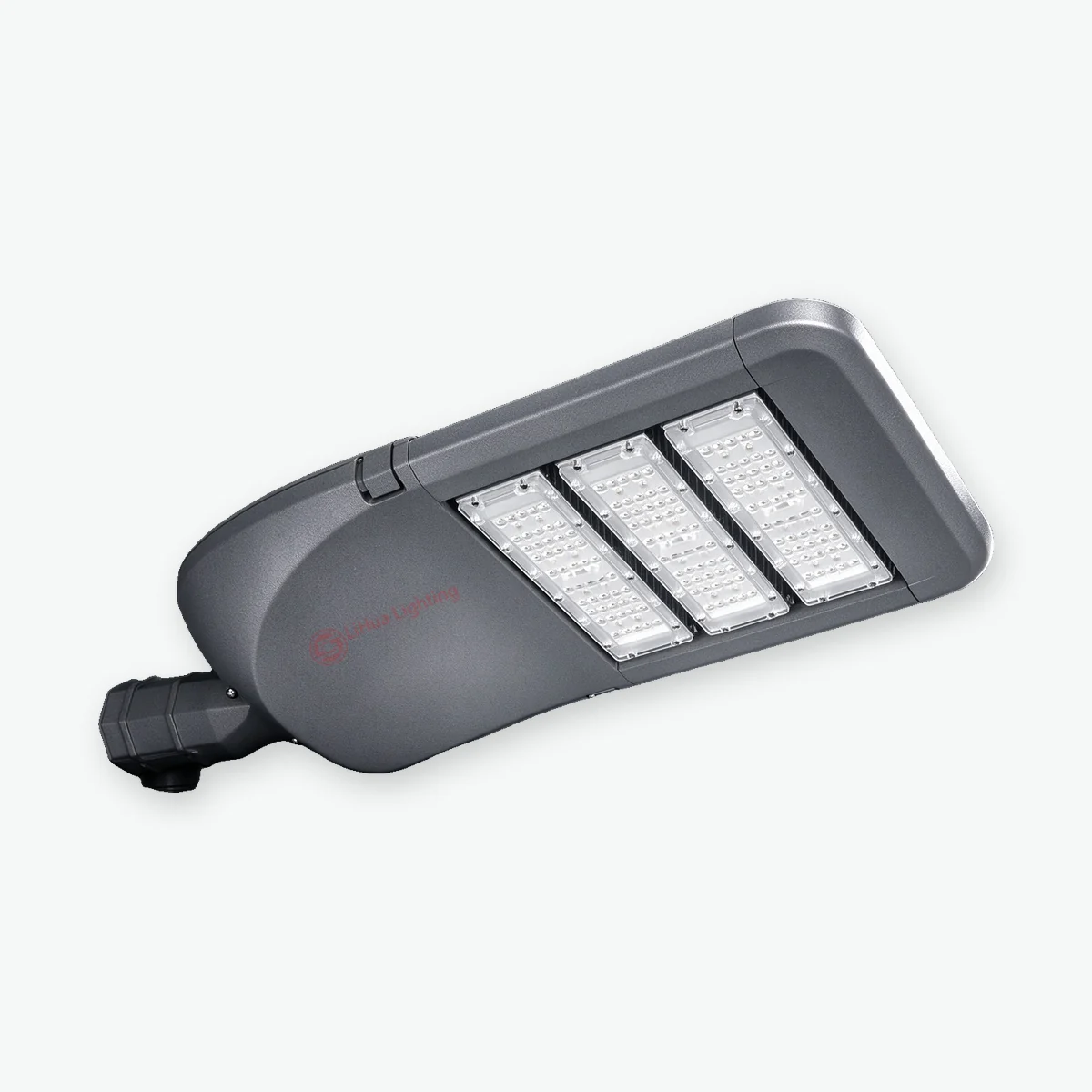

The LH-RL400 is an LED street light with a rounded, streamlined silver-grey housing and flat LED modules. It comes in 2-module (LH-RL402) and 3-module (LH-RL403) versions.
Rounded housing for streets and parks
The smooth, rounded body suits city streets, campuses, parks and commercial areas where the fixture is in view. Vent slots near the socket help release heat. Use the 2-module version for narrower streets and the 3-module version for wider roads. LiHua can customize power per module, CCT, lens type, finish and logo for your project. See all LED lighting.
LH-RL400 specifications
Common specs, customizable on request.
| Housing | Die-cast aluminum, rounded streamlined body with vent slots near the socket, silver-grey finish (typical). |
|---|---|
| Light source | SMD 3030 / 5050 LED modules with PC lens (typical). |
| Power per module | About 50W (typical); 30–60W per module on request. |
| Efficacy | 130–160 lm/W (typical). |
| Input voltage | AC 100–277V, 50/60Hz (typical); other ranges on request. |
| Power factor | >0.95 (typical). |
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K options. |
| CRI | Ra ≥70 (typical); Ra ≥80 optional. |
| Driver | Constant-current driver; brand options such as Meanwell / Inventronics on request. |
| Dimming / control | ON/OFF standard; 0–10V, DALI or photocell options on request. |
| Optics | Type II / Type III street lens options. |
| Surge protection | 10kV (typical); 20kV optional. |
| IP / IK rating | IP66 / IK08 (typical). |
| Mounting | Pole / arm socket (typical). |
| Operating temperature | −30°C to +50°C (typical). |
| Lifetime | L70 50,000 h (typical). |
| Applications | Main and secondary roads, residential streets, parks, industrial zones, parking lots. |
| Warranty | 2 years |
| Model | LED modules | Power | Size (mm) |
|---|---|---|---|
| LH-RL402 | 2 | 100W (typ.) | On request |
| LH-RL403 | 3 | 150W (typ.) | On request |
Specifications are for reference only. Please confirm with our sales team before ordering.
Related products
- LH-10401 / LH-10501 LED Street Light Heads 30W–250W
- LH-13001–13105 LED Street Light Poles 6–12m
- LH-6601–6703 Solar Wall & Garden Lights
See all LED Lighting or request a quote.
Ordering, MOQ and OEM/ODM
MOQ 200 pcs · Lead time 12–27 working days · Payment: 30% deposit, balance before shipment
OEM / ODM: logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
Source factory since 2012 · How we build and test · OEM & ODM service · Buyer FAQ
FAQ
What is the minimum order quantity for the LH-RL400?
MOQ 200 pcs.
What is the lead time for the LH-RL400?
Lead time 12–27 working days. The exact schedule is confirmed with your order.
What are the payment terms?
Payment terms: 30% deposit, balance before shipment.
What warranty does the LH-RL400 have?
2 years.
Can I order the LH-RL400 under my own brand (OEM/ODM)?
Yes. Logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
How do I get a quotation?
Use the Get a Quote button on this page, message us on WhatsApp at +86 131 6873 9810, or email sales@mileds.com with the model, quantity and target market. Specifications are for reference only. Please confirm with our sales team before ordering.
We reply to every inquiry within 24 hours.
Email: sales@mileds.com
