MODEL LH-RL302 / LH-RL303 / LH-RL304 / LH-RL305
LH-RL300 Modular LED Street Light with Tilt Bracket, 2–5 Modules
The LH-RL300 is a modular LED street light with a slotted vent cover and an adjustable tilt bracket. It comes in 2, 3, 4 and 5 module versions.
Vented cover and adjustable bracket
The slotted cover lets air pass over the heat sink of each module. The tilt bracket lets installers set the light angle on site, which helps on wide roads and at junctions. Use 2 or 3 modules for streets and yards, and 4 or 5 modules for main roads. LiHua can customize power per module, CCT, lens type, bracket, finish and logo. See all LED lighting.
LH-RL300 specifications
Common specs, customizable on request.
| Housing | Die-cast aluminum with slotted vent (heat-sink) cover, grey finish (typical). |
|---|---|
| Light source | SMD 3030 / 5050 LED modules with PC lens (typical). |
| Power per module | About 50W (typical); 30–60W per module on request. |
| Efficacy | 130–160 lm/W (typical). |
| Input voltage | AC 100–277V, 50/60Hz (typical); other ranges on request. |
| Power factor | >0.95 (typical). |
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K options. |
| CRI | Ra ≥70 (typical); Ra ≥80 optional. |
| Driver | Constant-current driver; brand options such as Meanwell / Inventronics on request. |
| Dimming / control | ON/OFF standard; 0–10V, DALI or photocell options on request. |
| Optics | Type II / Type III street lens options. |
| Surge protection | 10kV (typical); 20kV optional. |
| IP / IK rating | IP66 / IK08 (typical). |
| Mounting | Adjustable tilt bracket for pole or arm mounting (typical). |
| Operating temperature | −30°C to +50°C (typical). |
| Lifetime | L70 50,000 h (typical). |
| Applications | Main and secondary roads, residential streets, parks, industrial zones, parking lots. |
| Warranty | 2 years |
| Model | LED modules | Power | Size (mm) |
|---|---|---|---|

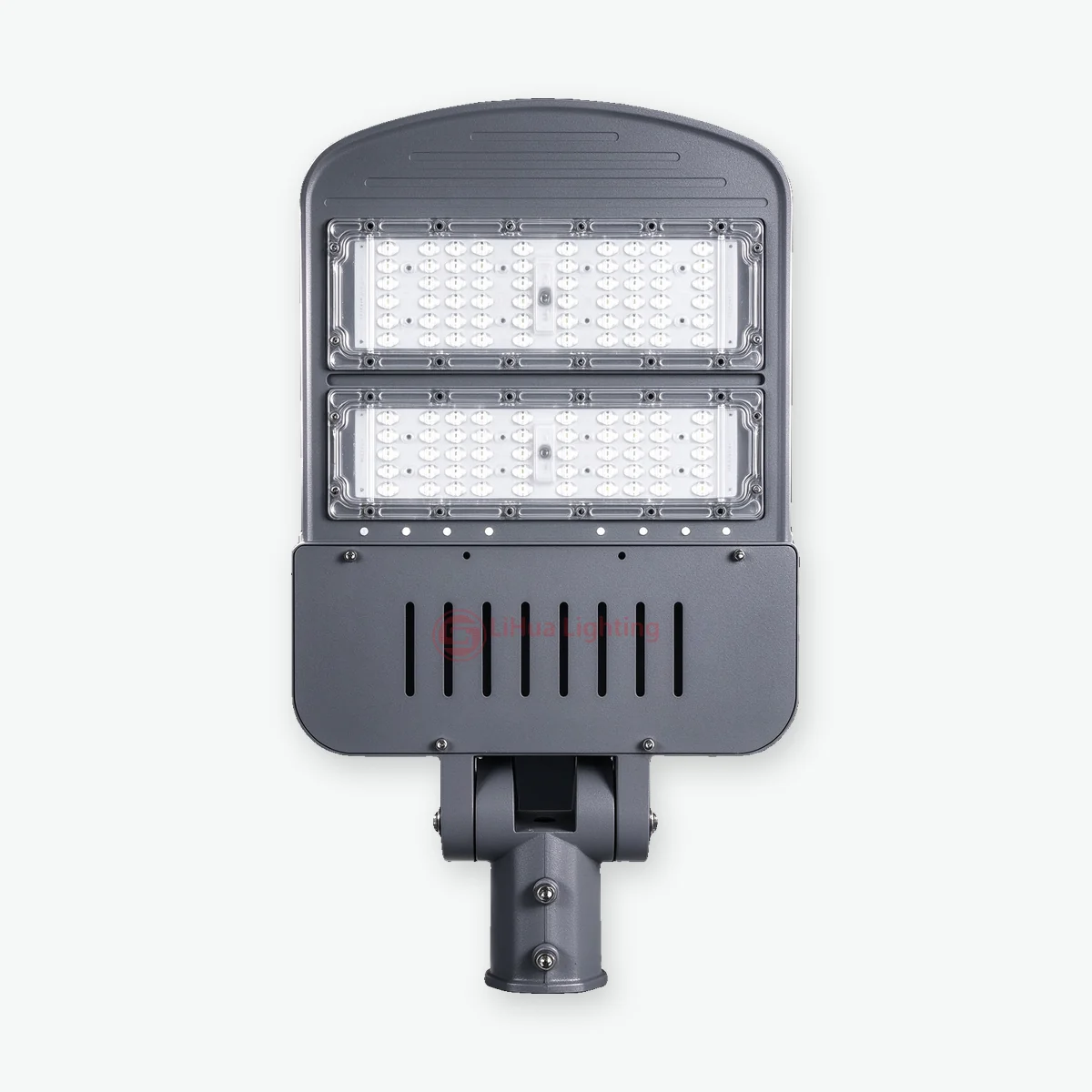

| LH-RL302 | 2 | 100W (typ.) | On request |
| LH-RL303 | 3 | 150W (typ.) | On request |

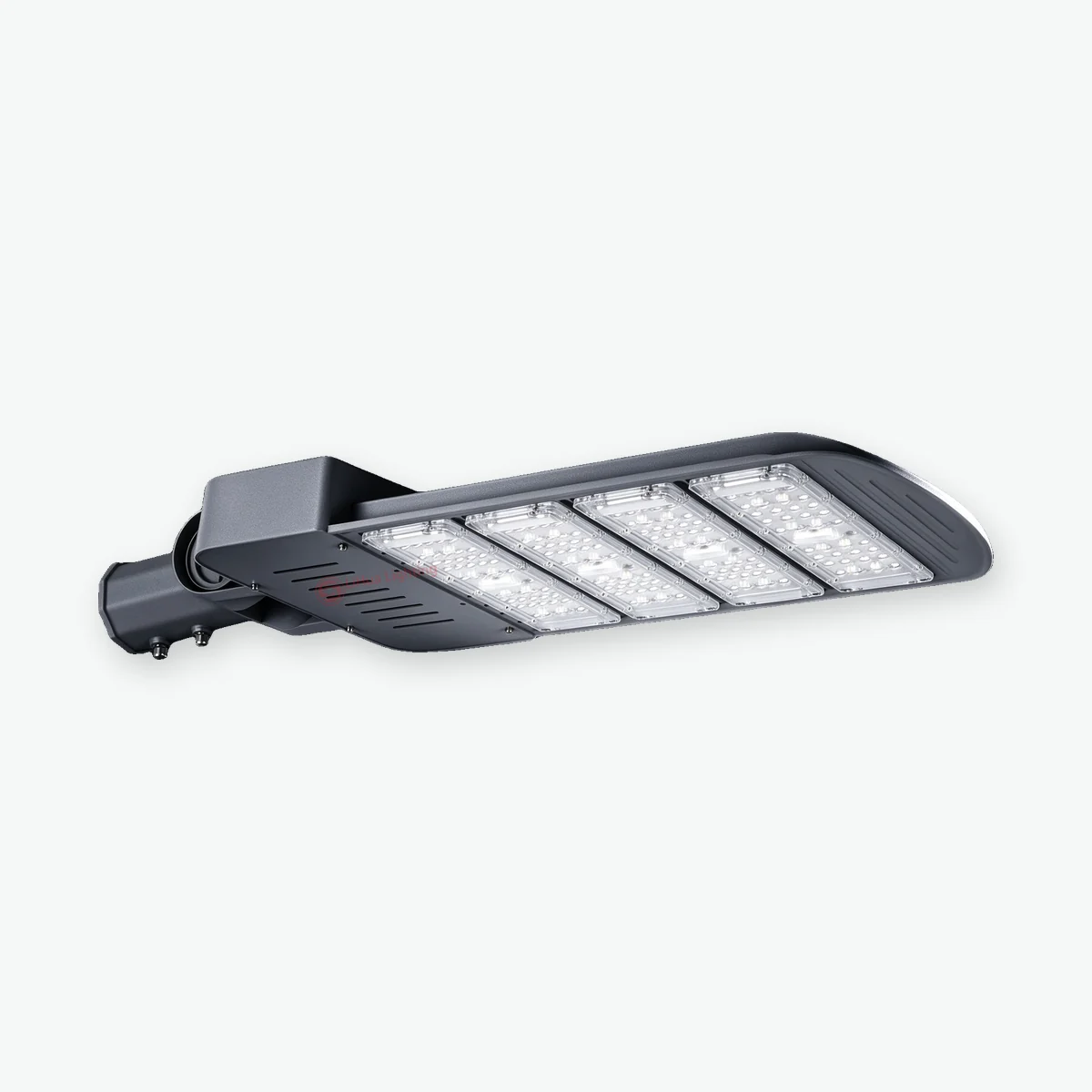

| LH-RL304 | 4 | 200W (typ.) | On request |

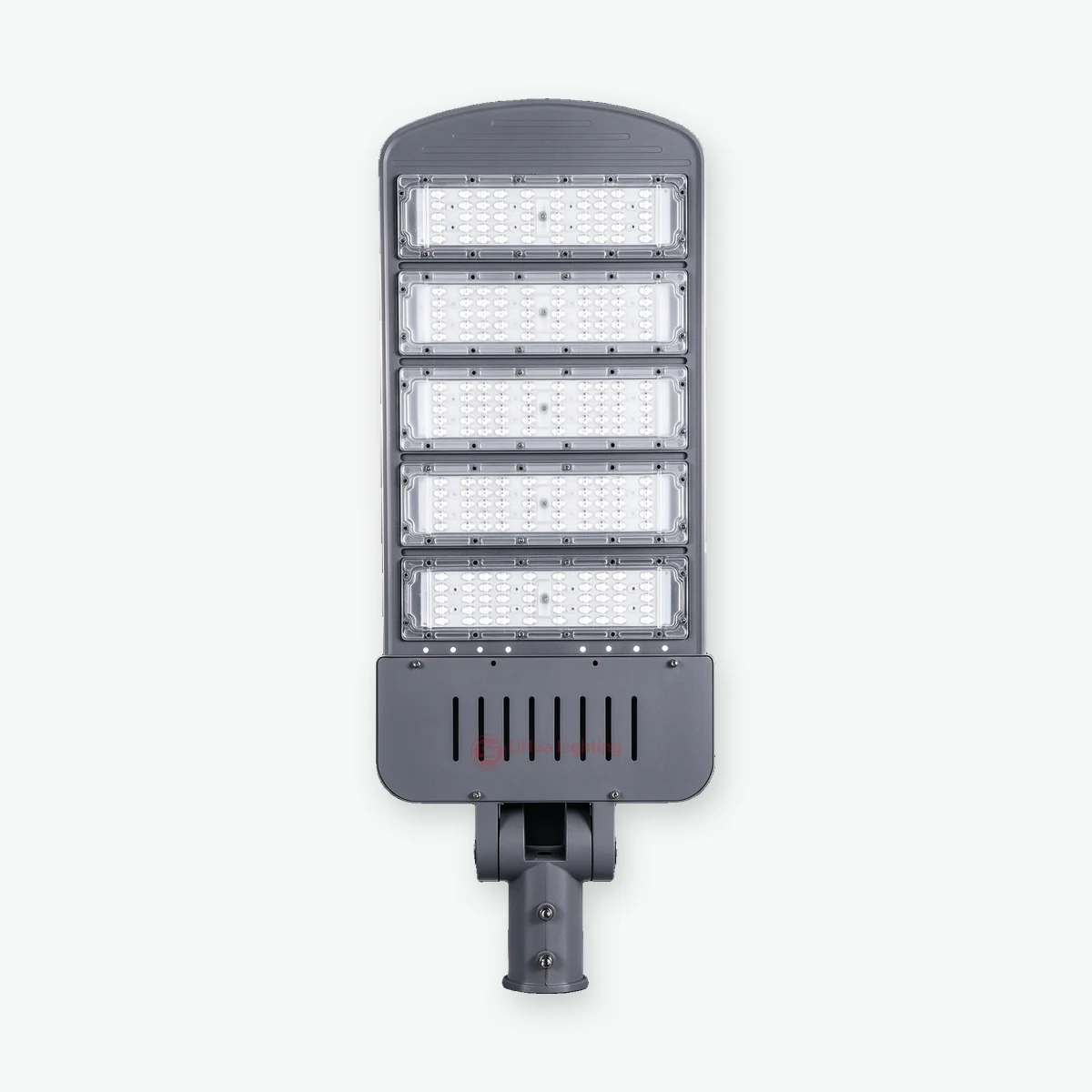

| LH-RL305 | 5 | 250W (typ.) | On request |
Specifications are for reference only. Please confirm with our sales team before ordering.
Related products
- LH-10401 / LH-10501 LED Street Light Heads 30W–250W
- LH-13001–13105 LED Street Light Poles 6–12m
- LH-6601–6703 Solar Wall & Garden Lights
See all LED Lighting or request a quote.
Ordering, MOQ and OEM/ODM
MOQ 200 pcs · Lead time 12–27 working days · Payment: 30% deposit, balance before shipment
OEM / ODM: logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
Source factory since 2012 · How we build and test · OEM & ODM service · Buyer FAQ
FAQ
What is the minimum order quantity for the LH-RL300?
MOQ 200 pcs.
What is the lead time for the LH-RL300?
Lead time 12–27 working days. The exact schedule is confirmed with your order.
What are the payment terms?
Payment terms: 30% deposit, balance before shipment.
What warranty does the LH-RL300 have?
2 years.
Can I order the LH-RL300 under my own brand (OEM/ODM)?
Yes. Logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
