MODEL LH-RL202 / LH-RL203 / LH-RL204 / LH-RL205
LH-RL200 Modular LED Street Light, 2–5 Modules

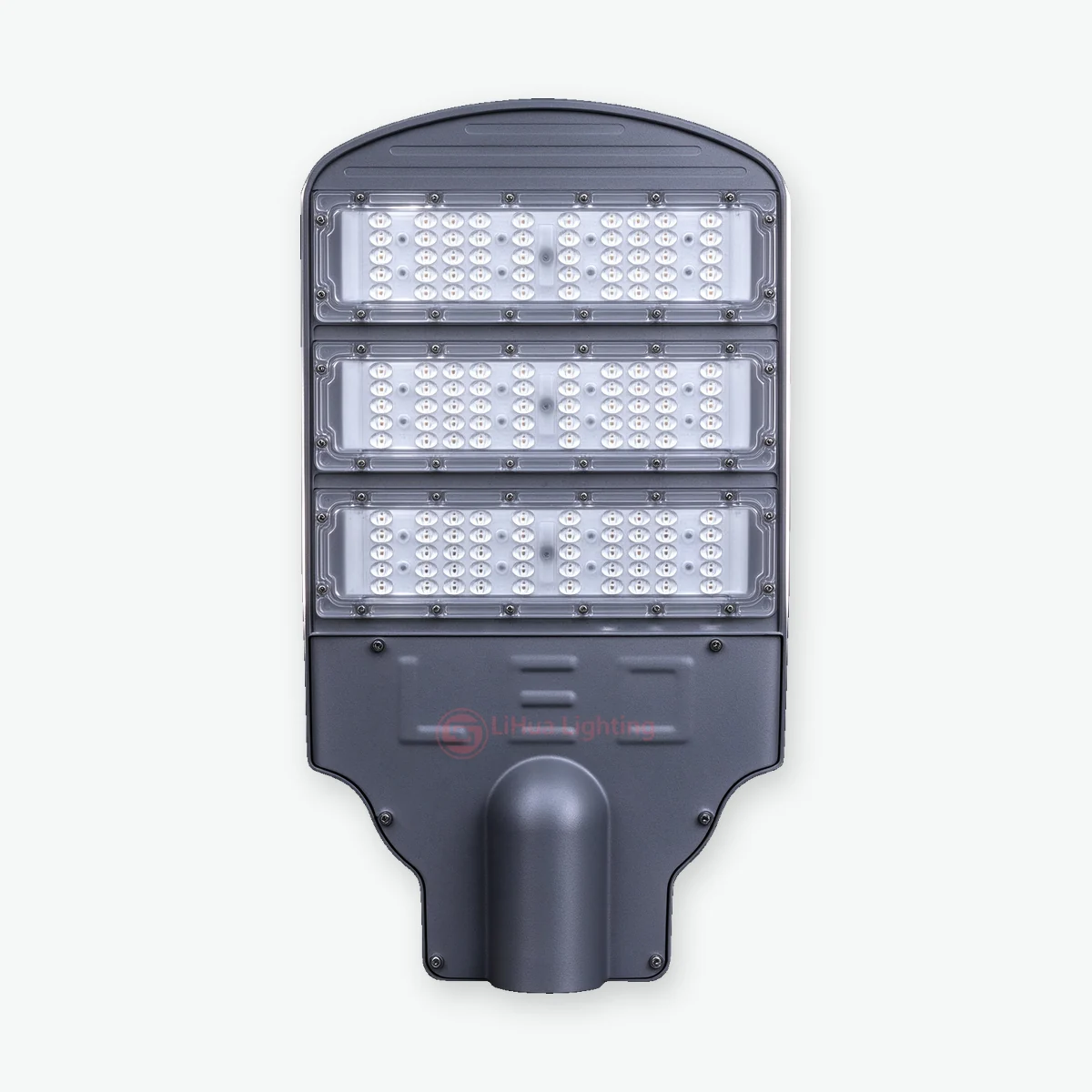

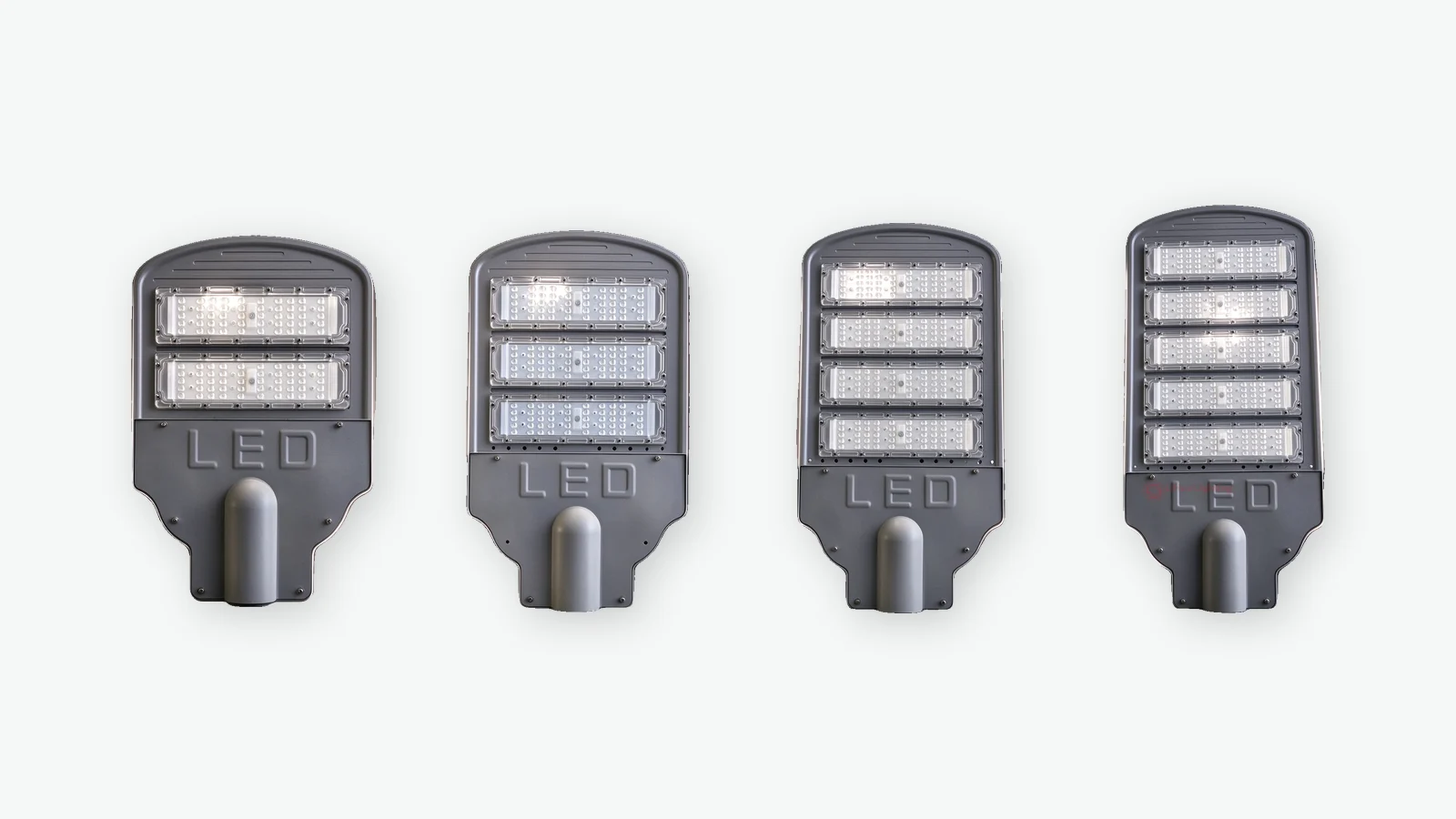

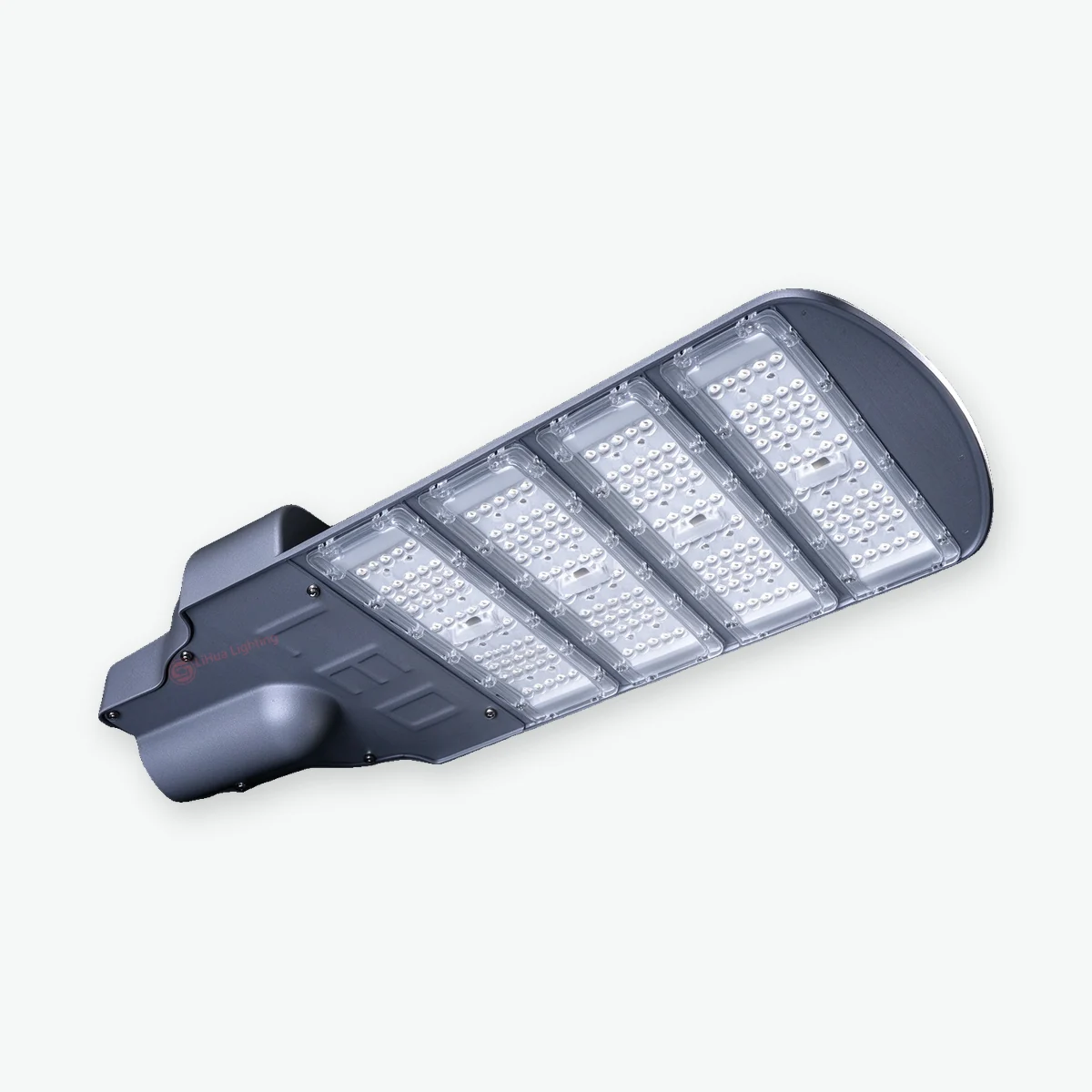

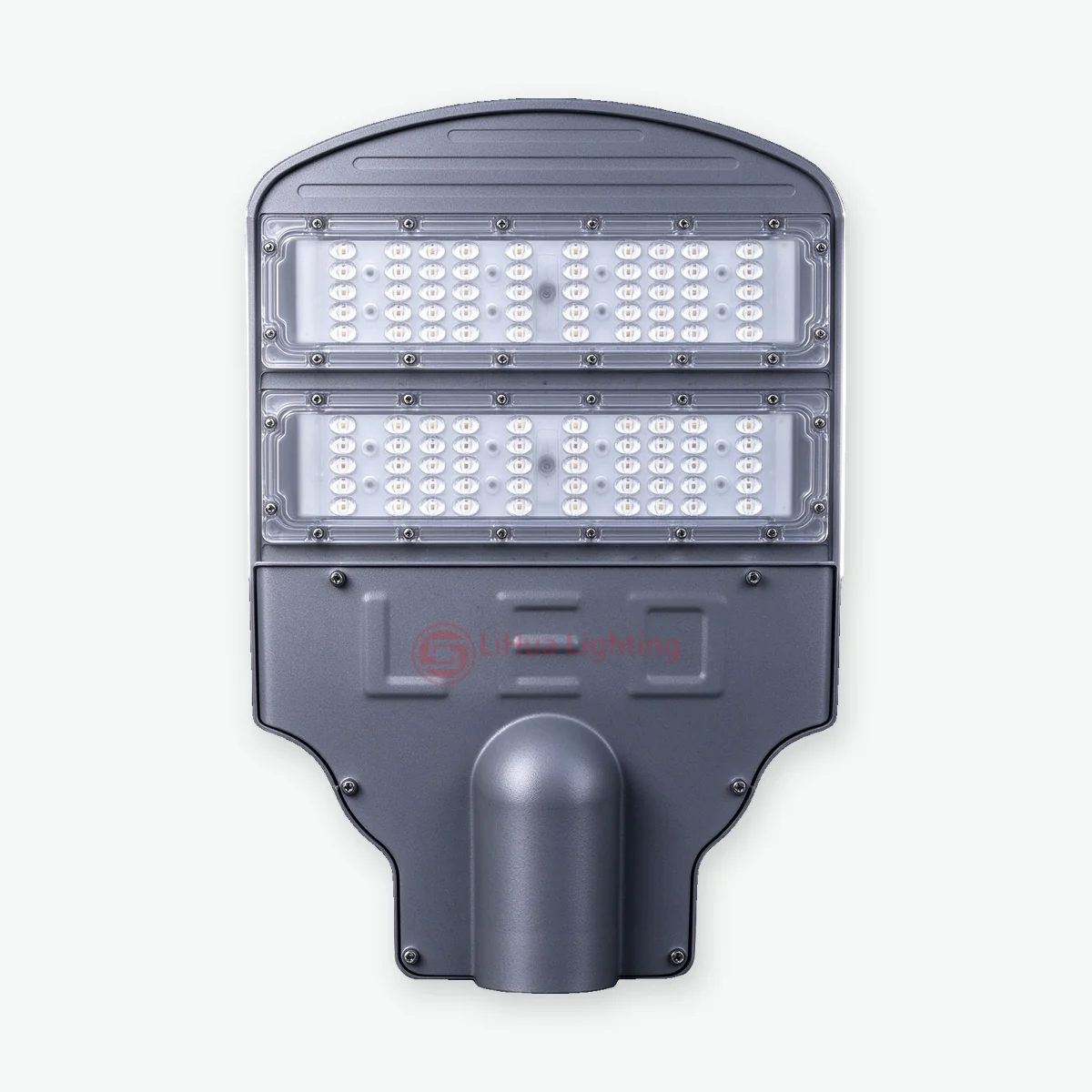

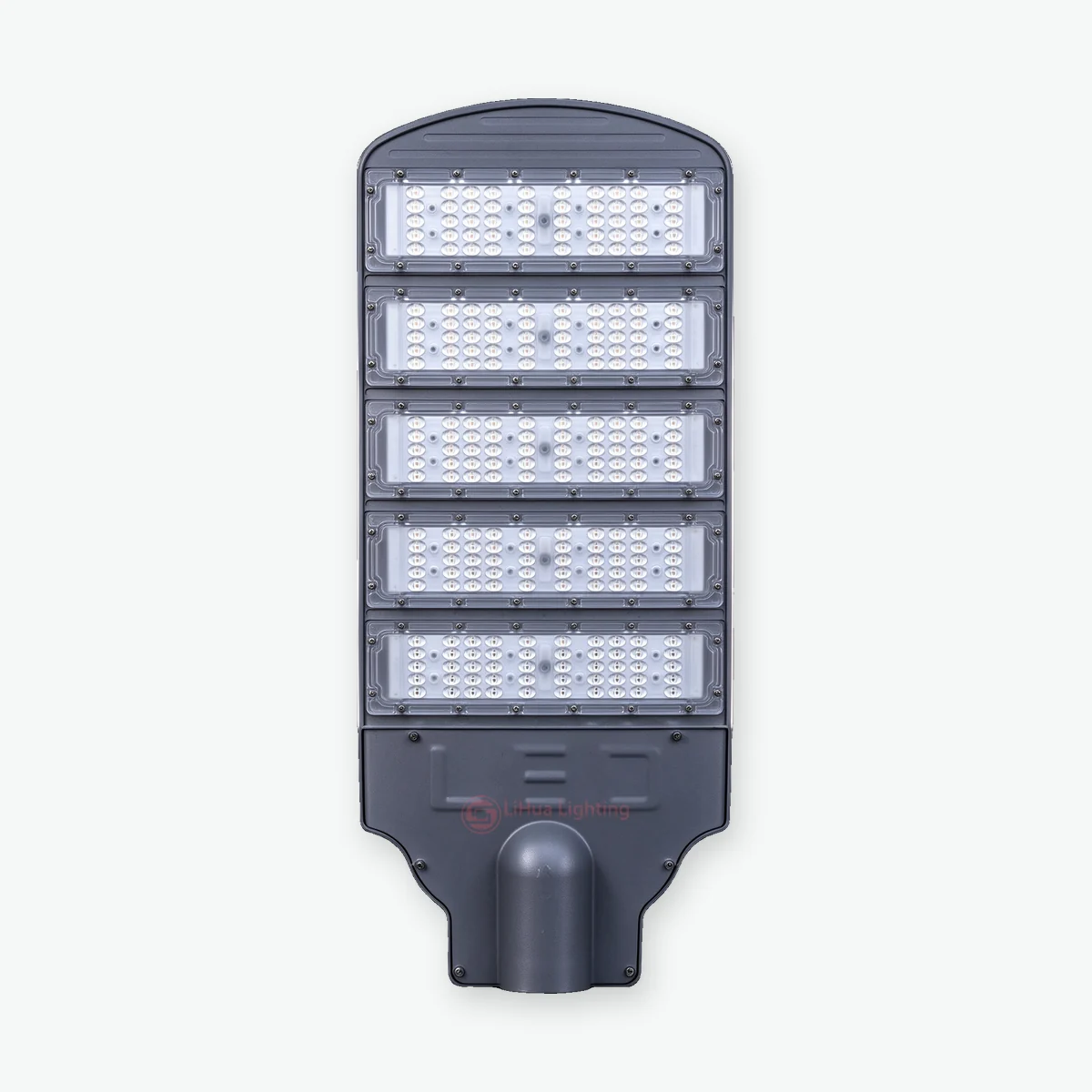

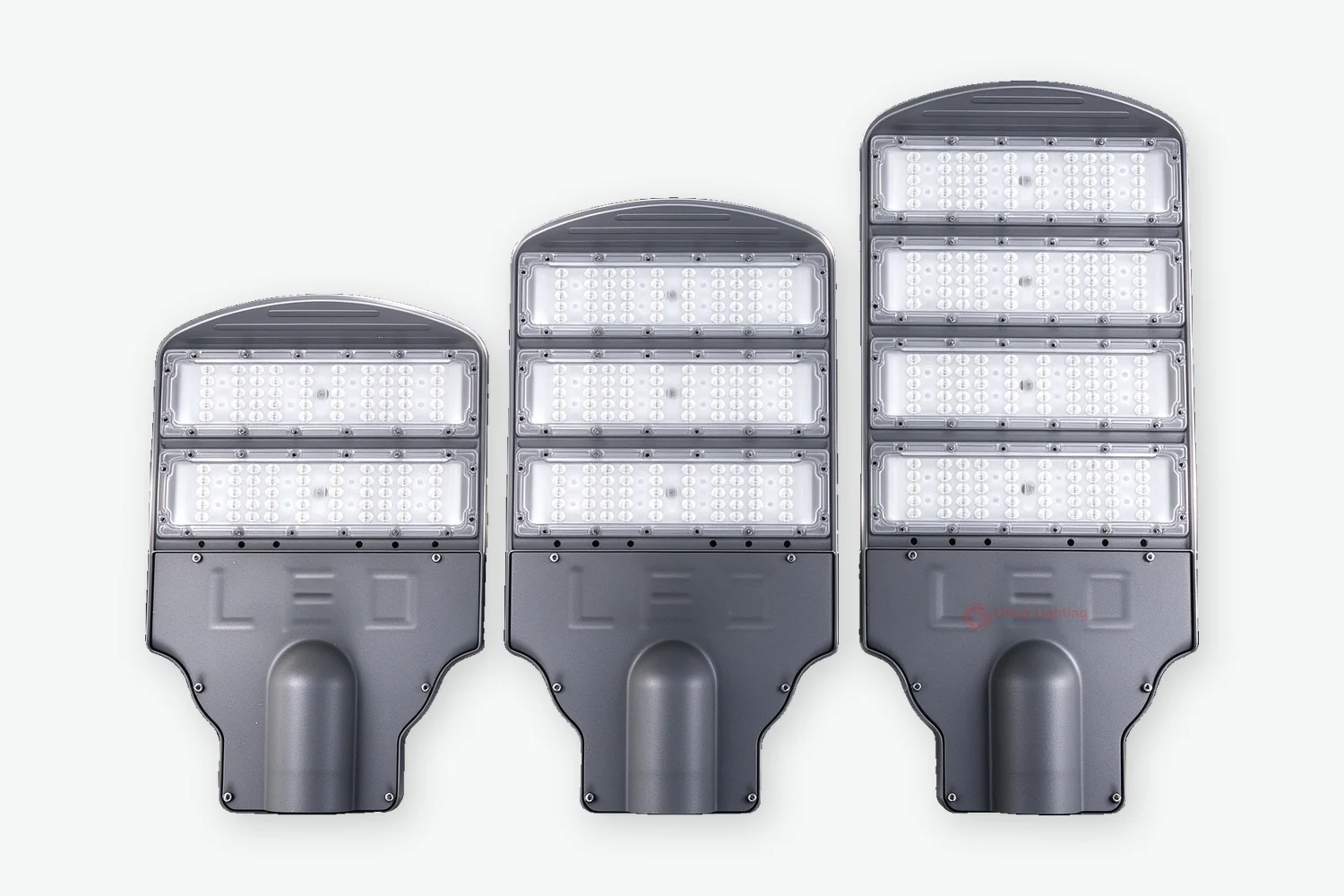

The LH-RL200 is a modular LED street light with a grey die-cast housing and flat SMD LED modules. It comes in 2, 3, 4 and 5 module versions; the last digit of the model is the module count.
Power set by module count
Pick the module count to fit the road: 2 or 3 modules for residential streets and parking lots, 4 or 5 modules for main roads. All versions share the same housing style and socket, so one project can mix powers with a uniform look. LiHua can customize power per module, CCT, lens type, finish and logo. Tell us your pole height and road width to get a recommendation. See all LED lighting.
LH-RL200 specifications
Common specs, customizable on request.
| Housing | Die-cast aluminum, grey finish, embossed “LED” letters on the lower body (typical). |
|---|---|
| Light source | SMD 3030 / 5050 LED modules with PC lens (typical). |
| Power per module | About 50W (typical); 30–60W per module on request. |
| Efficacy | 130–160 lm/W (typical). |
| Input voltage | AC 100–277V, 50/60Hz (typical); other ranges on request. |
| Power factor | >0.95 (typical). |
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K options. |
| CRI | Ra ≥70 (typical); Ra ≥80 optional. |
| Driver | Constant-current driver; brand options such as Meanwell / Inventronics on request. |
| Dimming / control | ON/OFF standard; 0–10V, DALI or photocell options on request. |
| Optics | Type II / Type III street lens options. |
| Surge protection | 10kV (typical); 20kV optional. |
| IP / IK rating | IP66 / IK08 (typical). |
| Mounting | Round post-top / side-arm socket (typical). |
| Operating temperature | −30°C to +50°C (typical). |
| Lifetime | L70 50,000 h (typical). |
| Applications | Main and secondary roads, residential streets, parks, industrial zones, parking lots. |
| Warranty | 2 years |
| Model | LED modules | Power | Size (mm) |
|---|---|---|---|
| LH-RL202 | 2 | 100W (typ.) | On request |
| LH-RL203 | 3 | 150W (typ.) | On request |
| LH-RL204 | 4 | 200W (typ.) | On request |
| LH-RL205 | 5 | 250W (typ.) | On request |
Specifications are for reference only. Please confirm with our sales team before ordering.
