MODEL LH-L-10KW / LH-L-16KW
LH-L Floor Mount Lithium Battery Series (10.496kWh / 16kWh)
The LH-L series is a floor mount lithium battery line: LH-L-10KW stores 10.496kWh (51.2V 205Ah), and LH-L-16KW stores 16kWh at 51.2V (Ah, weight and dimensions to be confirmed). Both use LiFePO4 with CAN and RS485 and a 6000-cycle rating.
Two capacities in one floor-standing design
Choose the 10kWh LiFePO4 battery floor mount model for typical homes, or the 16kWh floor mount home battery for larger loads. The case stands beside the inverter, with no wall bracket needed. Floor mount lithium battery OEM orders are welcome. See the inverter compatibility list and other home energy storage batteries.

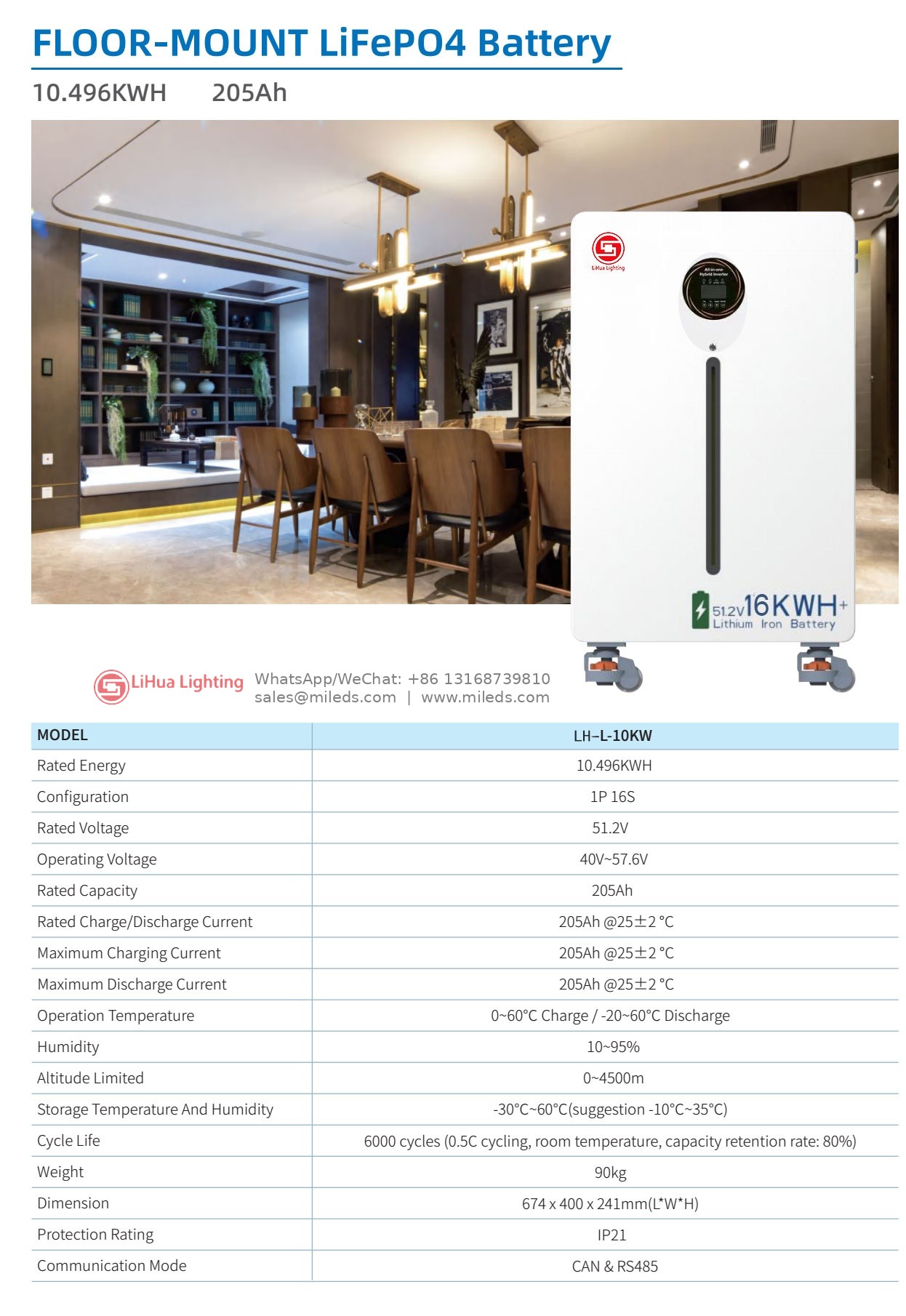

LH-L-10KW / LH-L-16KW specifications
Common specs, customizable on request.
| Series | LH-L floor-mount LiFePO4 |
|---|---|
| LH-L-10KW energy | 10.496 kWh |
| LH-L-10KW capacity | 205 Ah |
| Configuration (10KW) | 1P16S |
| Voltage | 51.2 V |
| Operating voltage | 40–57.6 V |
| Charge / discharge current (10KW) | 205 A @25±2°C |
| LH-L-16KW energy | 16 kWh (51.2 V) |
| LH-L-16KW Ah / weight / dimensions | To be confirmed |
| IP | IP21 (10KW datasheet) |
| Communication | CAN & RS485 |
| Cycle life | 6000 (tested under industry standard conditions) |
| Weight (10KW) | 90 kg |
| Dimensions (10KW) | 674 × 400 × 241 mm |
| Warranty | 3–5 years |
| Model | Energy | Voltage | Capacity | Notes |
|---|---|---|---|---|
| LH-L-10KW | 10.496 kWh | 51.2 V | 205 Ah | Datasheet values; currents in A |
| LH-L-16KW | 16 kWh | 51.2 V | To be confirmed | Casing print 16KWH+; Ah/weight/size TBD |
Specifications are for reference only. Please confirm with our sales team before ordering.
Related products
- LH-ESS-F Floor-standing Home Energy Storage System
- LH51.2V300Ah 15.36kWh Wall-mounted / Floor LiFePO4 Home Battery
- LH-STACK Stackable Home Energy Storage Battery Series
See all Energy Storage Batteries or request a quote.
Ordering, MOQ and OEM/ODM
MOQ 200 pcs · Lead time 30 working days · Samples 15–20 days · Payment: 50%–70% deposit, balance before shipment
Source factory since 2012 · How we build and test · OEM & ODM service · Buyer FAQ
FAQ
What is the minimum order quantity for the LH-L-10KW / LH-L-16KW?
MOQ 200 pcs.
What is the lead time for the LH-L-10KW / LH-L-16KW?
Lead time 30 working days; samples 15–20 days. The exact schedule is confirmed with your order.
What are the payment terms?
Payment terms: 50%–70% deposit, balance before shipment.
What warranty does the LH-L-10KW / LH-L-16KW have?
3–5 years.
Can I order the LH-L-10KW / LH-L-16KW under my own brand (OEM/ODM)?
Yes. OEM and ODM orders are welcome. Send your requirements to our sales team and we will confirm what can be customized for this model.
How do I get a quotation?
Use the Get a Quote button on this page, message us on WhatsApp at +86 131 6873 9810, or email sales@mileds.com with the model, quantity and target market. Specifications are for reference only; please confirm with our sales team before ordering.
We reply to every inquiry within 24 hours.
Email: sales@mileds.com
