MODEL LH-YG5-6.2KW

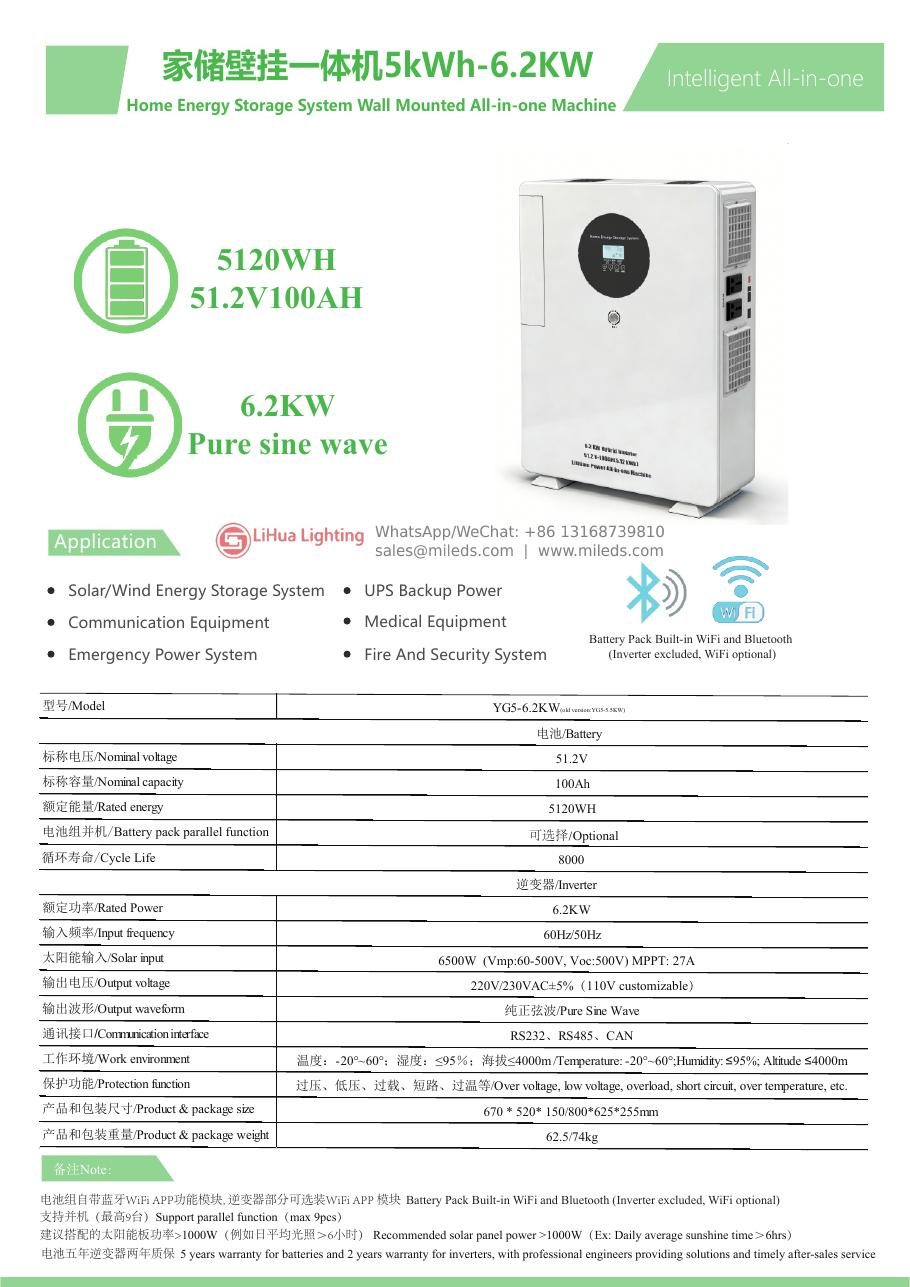

LH-YG5-6.2KW All-in-One Inverter with Lithium Battery (6.2kW + 5.12kWh)
The LH-YG5-6.2KW is an all in one inverter with lithium battery: a 6.2kW hybrid inverter and a 51.2V 100Ah (5.12kWh) LiFePO4 battery in one wall-mounted cabinet, with 6500W MPPT solar input and up to 9 units in parallel.
Inverter and battery in one cabinet
Buying a 6.2kW all-in-one inverter with 5kWh battery removes the cabling between separate boxes, which shortens installation for homes and small shops. Parallel up to nine units when the load grows. Wall-mounted all-in-one ESS OEM orders are available. Compare the full range of all-in-one energy storage systems.
LH-YG5-6.2KW specifications
Common specs, customizable on request.
| Model | LH-YG5-6.2KW |
|---|---|
| Type | Wall-mounted all-in-one |
| Battery | 51.2V 100Ah 5120Wh LiFePO4 |
| Inverter rated power | 6.2kW |
| Solar input | 6500W, Vmp 60–500V, Voc 500V, MPPT 27A |
| Parallel | Optional, up to 9 units |
| Cycle life | 6000 (tested under industry standard conditions) |
| Output | 220V/230VAC ±5% (110V customizable), pure sine wave, 50/60Hz |
| Communication | RS232, RS485, CAN; battery Bluetooth & WiFi, inverter WiFi optional |
| Operating environment | -20~60°C, humidity ≤95%, altitude ≤4000m |
| Warranty | 3–5 years |
| Product size | 670×520×150mm |
| Package size | 800×625×255mm |
| Net / gross weight | 62.5 / 74kg |
Specifications are for reference only. Please confirm with our sales team before ordering.
Related products
- LH-YG2.5-3.5KW Wall-mounted All-in-One ESS, 3.5kW + 2.56kWh
- LH-YG5-3.5KW Wall-mounted All-in-One ESS, 3.5kW + 5.12kWh
- LH-YG10-6.2KW Wall-mounted All-in-One ESS, 6.2kW + 10.24kWh
See all All-in-One Energy Storage Systems or request a quote.
Ordering, MOQ and OEM/ODM
MOQ 200 pcs · Lead time 30 working days · Samples 15–20 days · Payment: 50%–70% deposit, balance before shipment
OEM / ODM: logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
Source factory since 2012 · How we build and test · OEM & ODM service · Buyer FAQ
FAQ
What is the minimum order quantity for the LH-YG5-6.2KW?
MOQ 200 pcs.
What is the lead time for the LH-YG5-6.2KW?
Lead time 30 working days; samples 15–20 days. The exact schedule is confirmed with your order.
What are the payment terms?
Payment terms: 50%–70% deposit, balance before shipment.
What warranty does the LH-YG5-6.2KW have?
3–5 years.
Can I order the LH-YG5-6.2KW under my own brand (OEM/ODM)?
Yes. Logo, enclosure, functions and configuration can be customized. Certifications for your target market can be discussed with our sales team.
How do I get a quotation?
Use the Get a Quote button on this page, message us on WhatsApp at +86 131 6873 9810, or email sales@mileds.com with the model, quantity and target market. Specifications are for reference only; please confirm with our sales team before ordering.
We reply to every inquiry within 24 hours.
